LAN Cable, Cat5/Cat5e/CAT6, UTP/FTP/SFTP, Network Cable

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong Shenzhen
Payment Type:	T/T, Paypal, Western Union

Product Description

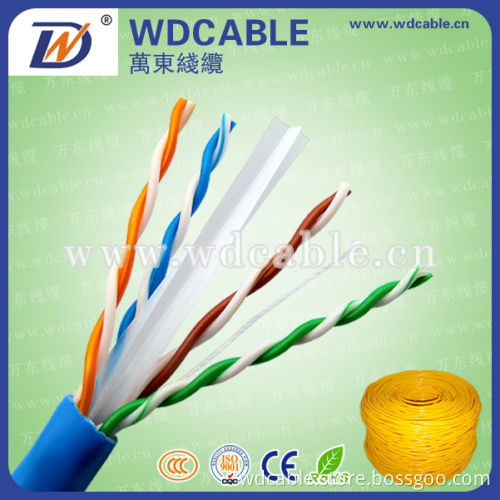

LAN Cable, CAT5/Cat5e/CAT6, UTP/FTP/SFTP, Network Cable

Product Performance:
Core
Conductor: 23AWG Plain Annealed
Copper Wire
Insulation: Polyolefin (HDPE)
Diameter: 1.00 -1.02mm Nominal
Pair: 2 of the above cores
Pair Color: Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Final Assembly
Cable: 4 of the above pairs cabled together around a cross fill
Sheath: PVC or LSHF compund

Mechanical and Environmental
Temp-Installation: 0 degree to + 50 degree
Temp-Operation: -20 degree to + 75 degree
Max Tensile Load: 10kg per simplex cable(installation)
Min Bend Radius: 8 * Outer Diameter (installation), 4 * Outer Diameter (operation)

If you have any request or question please contact with Jerry, THANKS!
