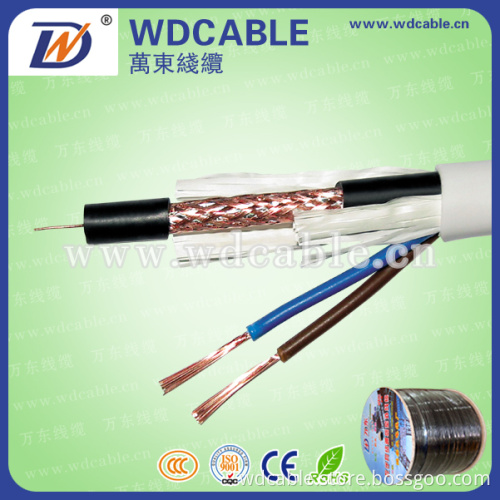

CCTV Coaxial Rg59 Siamese Cable with 2c

CCTV Coaxial Rg59 Siamese Cable with 2C

Siamese cable
1)BC or CCS conductor
2)solid PE or Foam PE insulation, 95% coverage
3)stranded or solid DC power
Siamese cable, RG59 with power cable, RG59 Siamese cable, Siamese cable, RG59 with DC


Specifications:
BC: Bare Copper TC: Tinned Copper
CCS: Copper Clad Steel
CCA: Copper Clad Aluminium C: Cores

1)RG59+2C
RG59: 0.81mm CCS/BC Conductor +3.65mm Solid/Foam PE+BC/TC Braiding +6.1mm PVC Jacket
2C/18AWG power cable: 2C*42*0.174mm BC Conductor + 2.17mm PVC Insulation + 0.63mm PVC Jacket
2) Customers' specifications are wellcomed.



Note:
1) Center conductor: TC, BC and CCS available, CCA;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil and Messenger are available;
3) Braiding wire: AL, BC and TC available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.



Application:
For audio and power transmission

Power Cable:
1) VDE/KEMA Flexible Cord
2) Light Duty PVC Jacket Flexible Cord
3) Ordinary Duty PVC Jacket Flexible Cord
4) Wire For Internal Wiring Of Equipment

If you have any inquiry and questions, please fell free to contact Cherry.
