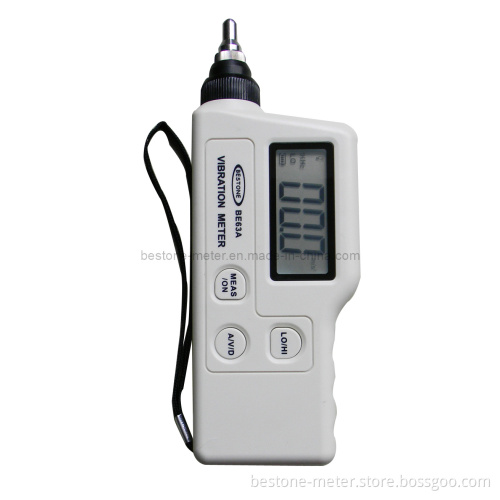

Vibration Meter (BE63A)

Features:
* Simple to use, the structure is compact, portable for carrying with measurement
* Display measurement value and state instantly
* 3 measurements in one meter: Acceleration, Velocity and Displacement
* Different vibration frequency selection
* High sensitivity probe for accurate measurement
* Comes with long & short probe head, each one is suitable for different measurement situation
* Equipped with AC signal output interface
* Low power indication
* Auto Power-off
* LCD Backlight

Specifictions:
* Vibration pickup: Piezoelectric ceramic accelerometer (shear-type)
* Measurement Range:
Acceleration: 0.1 ~ 199.9m/s2 peak
Velocity: 0.1 ~ 199.9 mm/s rms
Displacement: 0.001 ~ 1.9999mm p~p
(Velocity and displacement range is limited by acceleration 199.9m/s2)
* Accuracy: ± 5% ± 2digits
* Frequency Range
Acceleration: 10Hz ~ 1kHz (LO), 1kHz ~ 15kHz (HI)
Velocity: 10Hz ~ 1kHz (LO)
Displacement: 10Hz ~ 1kHz (LO)
* Displays update cycle: 1 second
* LCD display: 3½ Digits display
* Single Output:
AC output 2V peak (display full scale)
Load impedance 10kΩ Or more earphones can be connected
* Power Supply: 9V Alkaline Battery (included)
* Static current: ≤ 20µ A
* Operating current: ≤ 20mA
* Battery Life: 20hrs. Continuous use
* Auto Power-off: Turns off automatically in 60sec
* LCD Backlight: 7sec
* Operating Environment
Temperature: 0 ~ 40° C (32 ~ 104° F)
Humidity: 30 ~ 90% R. H.
* Low Battery Indication: 6.9V ± 0.2V
* Size: Approx. 67 x 30 x 183mm (2.64 x 1.18 x 7.2 inch)
* Weight: Approx. 182g (6.42oz) (battery included)
