Stepper Motor Driver

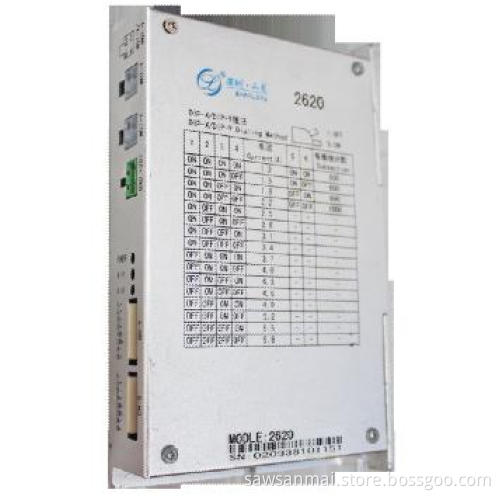

SL2620 stepper driver is full digital double axes 2-phase subdivision driver based on low-voltage control technology. It is adapted to power supply of DC 24V~40V and suitable to drive 4/6/8-wire 57mm or 86mm 2-phase hybrid stepper motors with small inertia and low voltage. With high precision, stable running and low noise, it has been widely applied to equipment such as single head embroidery machine, textile machinery, and CNC machine tools with requirements of small load, low noise and high precision.

Technical parameters

Adapted motor 2-phase 4/6/8-wire hybrid stepping motors
Motor number One set
Working voltage DC24V~40V; 50/60Hz
Output current 1.2~6A
Input signal CMOS/TTL
Min stepping angle 0.028125°
Dimensions (mm) 170*30.6*104
