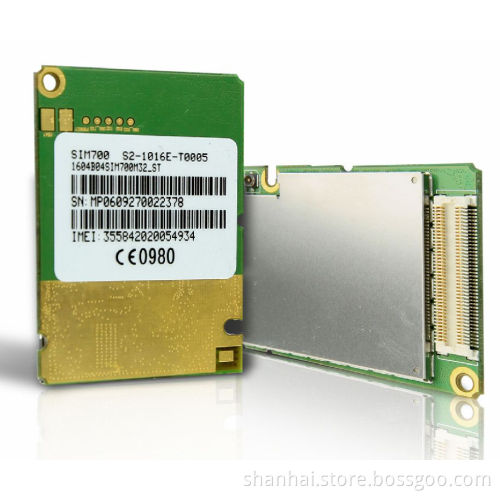

Edge Module (SIM700)

Product Description
The new EDGE module leading features of the module make it ideal for M2M applications such as AMR, POS, Security and AVL
General features
Quad-band GSM/GPRS/EDGE 850/900/1800/1900MHz
Output power:
GMSK:
Class 4 (2 W @ 850/900MHz)
Class 1 (1 W @ 1800/1900MHz)
8PSK:
Class E2 (0.5W @ GSM850/EGSM900)
Class E2 (0.4W @ DCS1800/PCS1900)
GPRS/EDGE multi-slot class 12
Coding scheme: CS1-4, MS1-9
Mobile station class B
Control via AT commands (GSM 07.07, 07.05 and SIMCOM enhanced AT Commands)
SIM application toolkit
Supply voltage range 3.4 - 4.5 V
Low power consumption
Normal operation temperature: -30º C to +80º C
Restricted operation temperature: -40º C to -30º C and +80º C to +85º C
Storage temperature: -45º C to +90º C
Dimension: 45mm X 34mm X 3mm
Specifications for fax: Group 3, class 1
Specifications for data:
CSD: Up to 14.4Kbps, non-transparent
GPRS: Max: 85.6Kbps
EDGE: DL/UL max: 236.8Kbps
Coding scheme: CS1~4, MCS1~9
Support PBCCH
Support USSD
Drivers: Multiplexer driver for Microsoft Windows
Specifications for voice
Half rate (ETS 06.20)
Full rate (ETS 06.10)
Enhanced full rate (ETS 06.50/06.60/06.80)
Echo cancellation
Noise reduction
AMR
Compatibility: AT cellular command interface
Interfaces
80-pins BTB connector
Power supply
Two analog audio channels
RTC backup
Dual - serial ports
USB slave
Antenna pad and antenna connector
Charge interface
SIM card
I2 C BUS
