10/100m Single Fiber CWDM Media Converter (APT-103WSL34/54OC)

APT-103WS34/54OC media converter is SM Single-fiber Dual-direction with transmittal distance 40KM Fiber Optic Media Converter, The media converter's feature with functions of LFP (Link Fault Pass-through) function for easily tracing the network link failure. LFP function can enhance the integrity and conformity of the TP-Fiber linking to improve the maintainability of the network

Single-fiber dual-direction fiber optic media converter be used Ethernet's electric signal to transmit photosignal 's photoelectricity signal transceiver, the feature is adopt one fiber cable can receive and transmit photosignal in-phase, enhance one double transmit energy than existing optical fiber, economized fiber cable's source.

APT-103WS34/54OC is a self-adapted single-fiber dual-direction fiber optic media convertr with 10/100M. Due to single-fiber dual-direction media converter's transmit photosignal transmit wavelength and receive wavelength are difference, than must use by gemination. Namely is one TX and one RX, don't be used wrong, otherwise can't work up to snuff.

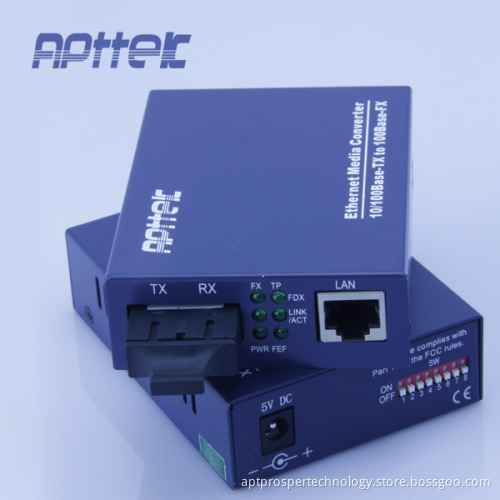

APT-103WS34/54OC singlemode single-fiber's transmit photosignal is wavelength 1550nm, receive photosignal is wavelength 1310nm; Sing-fiber dual-direction media converter have one RJ-45 interface and one SC single-fiber interface, separate for use to connecting twisted-pair and fiber. Single-fiber media converter have 6 LED indicator: POWER, TX100, FX100, FX Link/ACT, TX Link/ACT, FDX.
