Product Description
Product Description

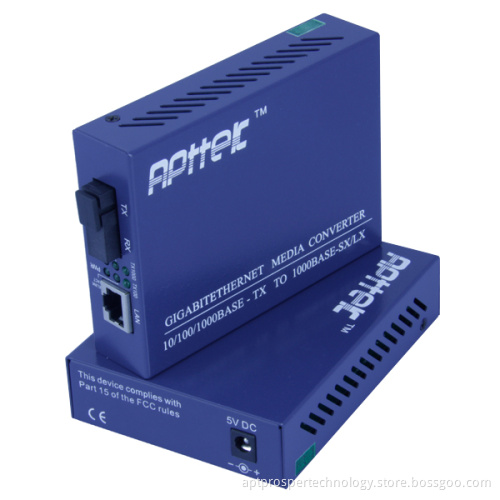

APT-1124WS33/53OC ethernet media converter is 10/100/1000M CWDM media converter, single mode, single fiber. Up to 20KM, and External power supplier with meida converter. This media converter can help the user convert theirs 1000Base TX port to 1000Base RX port, extending the network transmitting distance up to 20KM
APT-1124WS33/53OC Single-fiber dual-direction fiber optic media converter be used to Ethernet's electricity signal transmit to photosignal's photoeletricity signal's transceiver. The feature is use one fiber to transmit and receive photosignal in-phase. Less than dual-fiber media converter for one fiber but can enhance one double transmit energy, economization optical fiber cable resource.
APT-1124WS33/53OC Singlemode single-fiber is 10/100/1000M self-adapt single fiber dual-direction fiber optic media converter. It's completeness according with IEEE802.3ab, IEEE802.3u, 10BaseT, 100BaseTX, 1000Base-TX, 1000Base-SX, 1000 Base-LX standard.
APT-1124WS33/53OC Singlemode single fiber is a single gigabit single fier media converter. Due to single fiber dual-direction media converter's photosignal transmit wavelength and receive wavelength are differece, so must be use by pair. One TX and One RX be one pair, can't use wrong, if not will can't working normal. Singlemode single fiber's transmit photosignal wavelength is 1550nm, receive photosignal wavelength is 1310nm; Single fiber dual-direction media converter have one RJ-45 interface and one SC single fiber interface, separate for twisted-pair and fiber to connecting. Single fiber media converter have 6 LED indicator: POWER, SPDFX1000, SPDTX1000, FX Link/Act, TX Link/Act, Fdx.
Specification
Connect type: SC
Fiber type: Singlemode
Wavelength: 1310/1550nm
Typical distance: 20KM
Min TX PWR: -6.0dBm
Max TX PWR: 0.0dBm
Sensitivity: < -22dBm
Link budget: 16.0dBm
APT-1124WS33/53OC Single-fiber dual-direction fiber optic media converter be used to Ethernet's electricity signal transmit to photosignal's photoeletricity signal's transceiver. The feature is use one fiber to transmit and receive photosignal in-phase. Less than dual-fiber media converter for one fiber but can enhance one double transmit energy, economization optical fiber cable resource.
APT-1124WS33/53OC Singlemode single-fiber is 10/100/1000M self-adapt single fiber dual-direction fiber optic media converter. It's completeness according with IEEE802.3ab, IEEE802.3u, 10BaseT, 100BaseTX, 1000Base-TX, 1000Base-SX, 1000 Base-LX standard.
APT-1124WS33/53OC Singlemode single fiber is a single gigabit single fier media converter. Due to single fiber dual-direction media converter's photosignal transmit wavelength and receive wavelength are differece, so must be use by pair. One TX and One RX be one pair, can't use wrong, if not will can't working normal. Singlemode single fiber's transmit photosignal wavelength is 1550nm, receive photosignal wavelength is 1310nm; Single fiber dual-direction media converter have one RJ-45 interface and one SC single fiber interface, separate for twisted-pair and fiber to connecting. Single fiber media converter have 6 LED indicator: POWER, SPDFX1000, SPDTX1000, FX Link/Act, TX Link/Act, Fdx.
Specification
Connect type: SC
Fiber type: Singlemode
Wavelength: 1310/1550nm
Typical distance: 20KM
Min TX PWR: -6.0dBm
Max TX PWR: 0.0dBm
Sensitivity: < -22dBm
Link budget: 16.0dBm
