Mobile Smart Card Reader Ibankspace -- SMR-SR
- Payment Type:
- T/T, Western Union, Paypal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T, Western Union, Paypal |
Product Description
Product Description

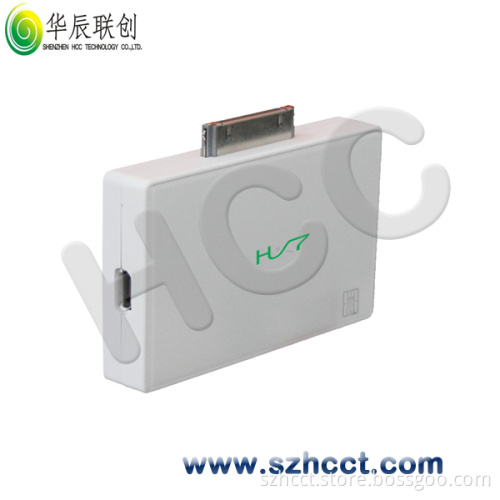

Mobile Smart Card Reader Ibankspace -- Smp-SR
1. Support for USB2.0 (PC/Android /window mobile, smart phones)
And 30pin(iPhone(1, 3G, 3GS, 4G), iPad(1, 2))
2. Support for IOS (3. X and higher), Android (2. X and higher), OS X (10.5.6 and higher, Windows XP and
higher), Linux system (2.6 and higher)
3. Compliant with ISO7816, PC/SC, CCID specification, EMV2000 Level 1 specification, MFI specification
4. Reads from and writes to all ISO 7816-1, 2, 3, 4 microprocessor cards, T=0 and T=1 protocols
5. Support for full-parameter PPS protocol
6. Supporting access to ISO 7816-3 standard-sized IC cards and TF interface ISO 7816-4 microprocessor cards.
7. Built-in RF antenna (13.56 MHz) (options)
| Model | SCTL-SR1 | SCTL-SR2 |
| Interface Type | Full speed Micro-USB2.0(PC/Andriod/Window mobile,Smart phones) | Apple 30pin(Iphone(1,3G,3GS,4G,4GS),Ipad(1,2,3),Ipod Touch(3,4) |
| Power Supply Mode | USB 5V | 30pin 3.3V |
| Communication Protocol | PC/SC,CCID | Private API(PC/SC) |
| Card Interface | ISO/IEC 7816-1/2/3 SmartCard,MicroSD interface ISO 7816-4 SmartCard | |
| Data Transfer Rate | 9600-38400bps | |
| Supported Operating System | IOS(3.x and higher),OSX(10.5.6 and higher),Andriod 2.x,linux(2.6 and higher),windows CE (5.0 and higher),windows(xp and higher) | |
| Operating Temperature | 0°C ~50ºC | |
| Storage Temperature | -20~85ºC | |
| Operating Humidity | <85%without Condensation | |
| Standard and Certification | ISO-7816 ,EN 60950/IEC 60950,CE FCC, RoHS Certification,EMV2000 Level 1,MFI Specification | |
| Application | iPhone/iPad/iPod or PCs; IC operation and high security application requiring electronic payment; network security; e-commerce and authentication; family bank; information security; identity and access control systems |
|
