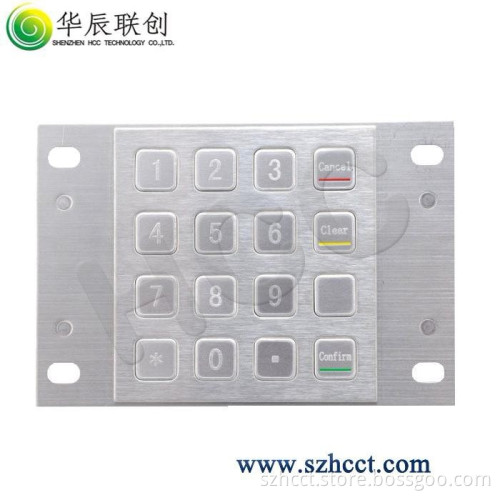

Hck 3501kiosk Encryption Pin Pad for ATM Parts

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

Feature
*Keypad made of high quality stainless steel
*Customizable layout, dimension and installation design
*Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
*Braille key design for visually handicapped people
*Ports for optional eight external function keys, beeper and guide light
*Tamper Detection and Protection
*IP Protection Class IEC/DIN/EN/ 60529: IP65
*IK Protection Class DIN EN 50102: IK07
*USB and RS232 interface optional

Key lifetime	> 200, 000 cycles per key
Force on keys	3-5 N
Key travel	0.45mm
GW	0.75KG
Supply Voltage	+5V DC +/-5%
Wide voltage input	7V DC-60V DC
In running state, 12 V +/- 20% is needed; the electrical current is up to 100 mA and the actual power consumption is below 1.5W
Running lifetime	> 10 years; Battery lifetime > 10 years (without external power supply)
Calculation time on 256 bytes by 3DES MAC calculation	< 500 milliseconds
Operating temperature range	– 25º C-45º C
Storage temperature range	– 25º C-65º C
Maximum humidity in operating environment	80%
For security reasons, the user PIN is deleted when the environment temperature is beyond the storage temperature range. The target level for this function is set to – 30º C
Certifications	Pass the certification of China Central Bank card testing center CE, RoHS, FCC
