Fully Automatic Pet Bottle Blow Molding Machine

Automatic Blow Molding Machine
MAIN PARTS:
Pneumatic part:
Cylinder---SMC (Japan)
Valve----SMC (Japan)
Electric part:
PLC-----LG (Korean) / Mitsubishi (Japan)
Relay-----OMRON (Japan)
Operation system-----LG (Korean) / HITECH(Taiwan)
Relay-----OMRON (Japan)
Infrared thermometer---- Raytek (America)

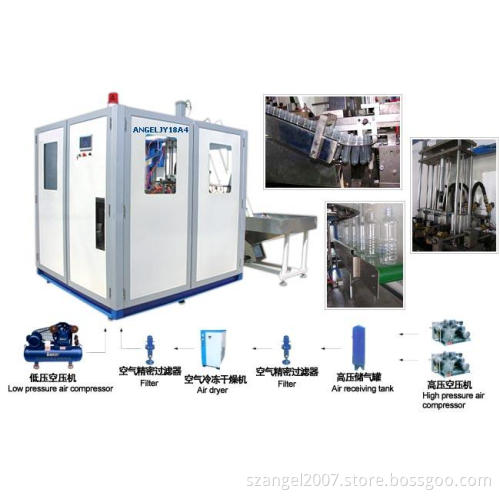

Model: ANGELJY-18A4
Productivity Depend on bottle design PCS/H 3200-4000
Power Electrical source power 380V 3phase 50-60Hz
Really use power: 14 KW
Operation air: 2000 NL/min
Blow air: 2500 NL/min
Cooling water L/min: 150
Machine size and weight
Main machine dimension size(LxWxH): 1950*1900*2400 mm
Main machine weight: 3600kg
Conveyor dimension size(LxWxH): 0.96*1.8*2.4 M
Preform unscrambler is equipped as standard
High pressure compressor M3/Mpa1.2/0.3*2sets 22 KW
Low pressure compressor M3/Mpa 1.6/1.0*1sets7.5 KW
Air cooling dryer M3/Mpa: 1.2/3.0*1sets
High pressure air receiving tank(D*H): M3/Mpa 1.2/3.0*3sets
High pressure gas tank(D*H): M3/Mpa 0.6/3.0*1set 0.7*2.55
Mould Mould cavities: 4
Boby diameter: 20-100 mm
Height: 50-350 mm
Neck diameter: 15-32mm
Mould thick: 240mm
Mould: 500*500mm
