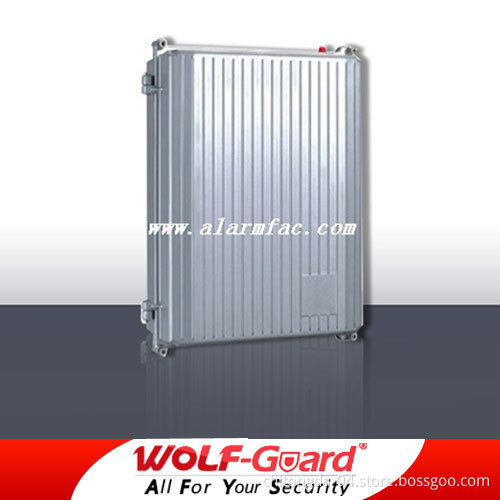

GSM/GPRS Transformer Security Alarm System (YL-007P2)

GSM/GPRS Transformer Security Alarm System: Tri-band GSM 900/1800/1900 MHz; Remote control the system; 3 output for home appliance control; 1 relay output for connecting with power or video when alarm.

Features of GSM/GPRS Alarm System YL-007P2:

1. Adopt tri-band GSM 900/1800/1900 MHz wireless network, no distance limit to alarm.
2. Support GSM/CDMA mobile phone, compatible Chinese / English message function, long distance to receive alarm and arm / disarm.
3. Can per-set 5 alarm phone numbers with room number, can send alarm signal to owners, policeman and the monitoring center.
4. Password operation to ensure system security, SMS password settings, remote arm/disarm.
5. User can remotely control the system, 3 output and home appliance via phone or mobile phone.
6. The host has 3 wired input ports, convenient to connect a variety of alarm device.
7. The host has 1 relay output port, convenient to connect power and video when alarming.
8. The host has internal siren port, can switch between the silence and alarm voice.
9. Anti-destroy alarm function, if open the machine chassis, the host will send alarm SMS.
10. Can work with SMS monitoring center via network.
11. Built-in 7AH battery ( optional ), automatically recharge.

Technical parameters:

* Static Current: 30 mA
* Power Supply: DC12 V
* Working Temperature: -40º C ~ +55º C
* Support GSM 900/1800/1900 MHz tri-band mode
* Support PHASE2/2 & protocol (Including data services)
* Transmission Power: (2W)/EGSM900, (1W)/GSM1800 GSM1900
* Input Ports: 3
* Power Voltage: AC 380V (3-phase 4-wire ) AC220V (2-phase 2-wire)
* Size: 280*230*95mm

This GSM/GPRS transformer alarm system is an electronic alarm system...It can monitor the base stations, substations, power distribution rooms, oil fields, mines, docks, street lamps, billboards, farms, orchards, fishponds, forests, transformer stations, GSM stations, Weather Stations, Control rooms, Oil and Gas pipelines monitors, River Monitoring Flood Controls, Valve controls, Pumping Stations, Power Stations Monitoring and other unattended positions. The MMS function of YL-007P2 has been won the national utility models patent, (patent number: ZL2003 2 0107152.9)
