Thermocouple Slip Rings

Thermocouple Slip Rings

Low Noise < 1mΩ
Thermocouple slip ring can transmit thermocouple signals. Thermo couple is temperature-sensing element, and it can measure temperature and transform temperature signal into thermoelectromotive signal and then transferred media temperature by electric instrument.
Request Thermocouple Slip Ring Solutions

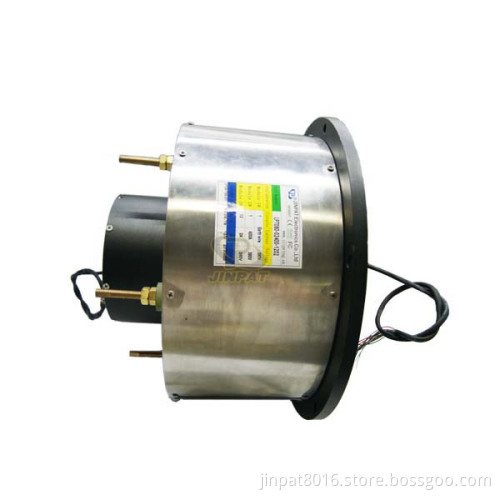

This low noise thermocouple slip-ring assembly is ideal for transmission of low level emf's where it is necessary to attach thermocouples to rotating parts. It can be used with any thermocouple calibration. It's low noise design introduces a total signal error of less than three microvolts at rotational speeds up to 2000 rpm.
The output leads consist of plain copper wires; No compensation is included. The slip-ring assembly will transfer the true microvolt signal coming from a rotating assembly.
Mechanical Specifications:
· Sealed Ball Bearings
· Speed: 0-2000 rpm (either direction)
· Operates in Any Position. When used vertically, the small shaft should be kept above the horizontal.
Electrical Specifications:
· Voltage: 120 V Maximum
· Current: 1.0 Amp Maximum
· Frequency: Dc to 10 MHz
· Temperature: - 15° To 158° F (-26° To 70)
