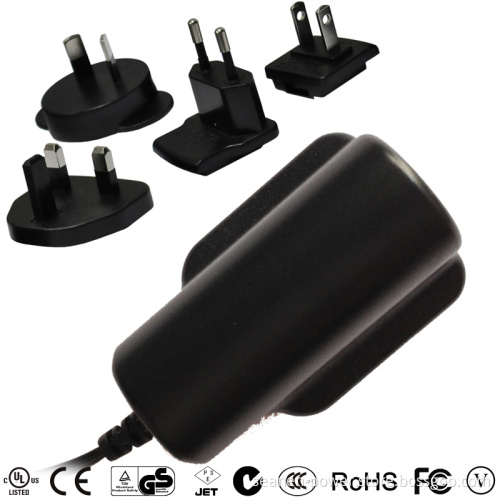

6W Series AC Adapter with Exchangeable AC Plugs
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Payment Type: | L/C, T/T |
Product Description
Product Description
6W Series AC Adapter with Exchangeable AC Plugs
AC Adapter with exchangeable AC plugs for USA, EU, UK, AU
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 2.8-24V, 0.1-5A, 1-45W
3) RoHS, REACH, PAHs, CEC V compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved
AC Adapter with exchangeable AC plugs 6W series Specification
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 2.8VDC to 12VDC
4) Output current: Available from 10mA to 1000mA
5) Output power: 5W max
6) with interchangeable AC plugs for America, Canada, Europe, United Kingdom, Australia, Japan etc
7) RoHS, PAHs, REACH, WEEE compliant
8) 6P, NP available
9) Energy efficiency: CEC V, EUP 2011, MEPS V
10) Input current: 0.6A Max, 100/240VAC
11) Inrush current: 60A Max, 230VAC at max load
12) Leakage Current: 0.25mA max
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 65*36*34.5mm
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
AC Adapter with exchangeable AC plugs for USA, EU, UK, AU
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 2.8-24V, 0.1-5A, 1-45W
3) RoHS, REACH, PAHs, CEC V compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved
AC Adapter with exchangeable AC plugs 6W series Specification
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 2.8VDC to 12VDC
4) Output current: Available from 10mA to 1000mA
5) Output power: 5W max
6) with interchangeable AC plugs for America, Canada, Europe, United Kingdom, Australia, Japan etc
7) RoHS, PAHs, REACH, WEEE compliant
8) 6P, NP available
9) Energy efficiency: CEC V, EUP 2011, MEPS V
10) Input current: 0.6A Max, 100/240VAC
11) Inrush current: 60A Max, 230VAC at max load
12) Leakage Current: 0.25mA max
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 65*36*34.5mm
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
