180W DMX Controller

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Western Union

Product Description

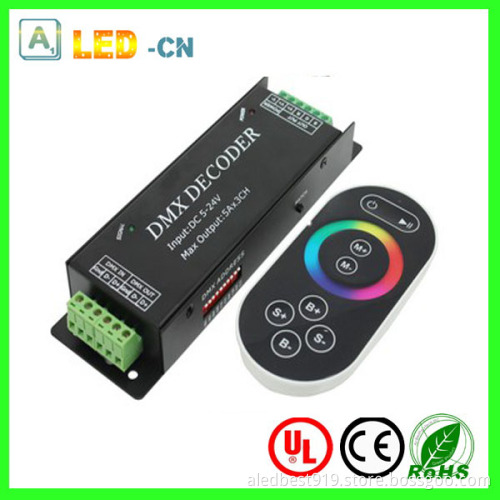

LED light DMX Controller

The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transformes it into PWM signal to drive LED; The port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connectied with DMX console, you can choose select the built-in 11 kinds of default patterns through the wireless remote control.

Technical Parameters

Controller
Working temperature: -20-60
Input voltage: DC5-24V
Output: 3 channels
Connection mode: Common anode
External dimension: L175 x W53 x H27(mm)
Packing size: L180 x W58 x H58(mm)
Net weight: 300g
Gross weight: 350g
Output current: <5A (each channel)
Output power: 5V: <75W, 12V: <180W, 24V: <360W

Touch remote
Working temperature: -20-60
Power supply mode: AAA*3 battery
Supply voltage: 1.5V*3
Standby power consumption: 0.015mW
Standby current: 3uA
Emission current: 10mA
Remote distance: 15m
