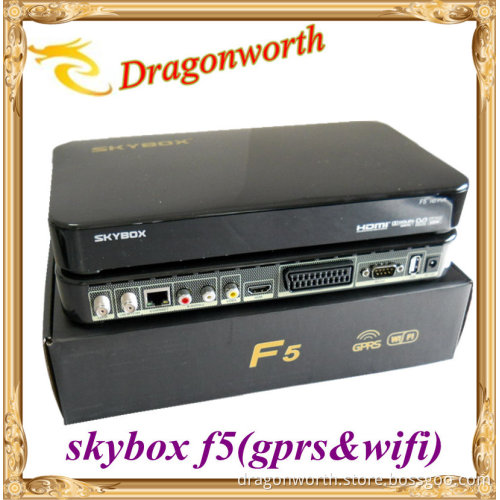

Skybox F5s HD Support GPRS and WiFi with VFD Display FTA Full HD Receiver

Skybox F5s HD PVR Cardsharing Mini HD Satellite Receiver
( skybox f5s - new OSD and VFD Display)

Skybox F5S HD PVR ( Full Original )

1, Ali3601 Processor, 396MHz MIPS, Dual-Core CPU
2, Supports HDMI 1.3
3, PVR Functions
4, NIT search Supported
5, Support cccamd, newcamd, MGcamd, Avatarcamd
6, Support USB wifi, weather forecast
7, Come with Sharp Tuner, Signal quality better
8, support GPRS function (Option)
9, with VFD Display
Main Features:
Dual CPU, 396 MHz MIPS Processor
Fully compliant MPEG-4 H. 264/AVC Main Profile Level 3 & High Profile Level 4.1;
Fully compliant MPEG-2 MP@HL & MP@ML;
Fully compliant MPEG-1 Layer I & II & III, Digital Audio(AC3);
SCPC & MCPC receivable from C/Ku band satellites;
Multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3 (USALS) supported)
NIT search supported;
Support MPEG-5;
Support HDMI 1.3;
Support PVR(store in USB disk);
Multimedia files playback(by USB);
Support Electronic Program Guide (EPG) for 7 days;
Teletext and subtitle out through OSD;
Support multi-lingual DVB subtitle and teletext;
Automatic and manual channel scan options;
Automatic service scan
Channel-change time < 1 second
OSD in many languages and skin-support
Fully Adaptable OSD in Many Languages
(English, French, German, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Arabic, Thai, Swedish, Danish, Greek, Bosnian, Bulgarian, selectable)
LED Display
Multiple display mode: 1080p/1080i/720p/570p/576i/480p;
MPEG-2 / H. 264 Hardware decoding
Videotext Decoder
Analog audio output: Stereo(L+R);
Screen format: Auto, 4: 3, and 16: 9;
Upgrade software through USB2.0 port;
Powerful program management function, parent lock;
CA 1x slot
10/100Mbit Ethernet Interface
Directly bouquet-lists

Specification:
Board configuration

396MHz MIPS CPU
128MB DDRII400 RAM
Memory Clock 198MHz
4MB Serial Flash
Single Tuner
DVB-S2 demodulator
Power Supply
Input 100V-240V 50/60Hz
Power Consumption
30W Max/1W Standby (it's optional by customer's board)
RS232
For FW Upgrading
Standard Receiver Standard
DVB-S2 Standard (DTSI EN 302 307)
Input Frequency Range
950MHz~2150MHz
Input Signal Level
-25dBm ~ -65dBm
Demodulation
QPSK, 8PSK, 16APSK
Transport Stream
MPEG-2 ISO/IEC 13818 Transport Stream Specification
MPEG Profile Level
MPEG-2 SD, MPEG-2 HD, H. 264/AVC SD, H. 264/AVC HD
LNB Power & Polarisation
Vertical +13.5V, Horizontal 18V, Current: MAX 500ma
Multi Satellite Receiving
22K switcher, DiSEqC1.0, DiSEqC1.1, DiSEqC1.2, USAL
Conditional Access System
1 CA card reader Slots
A/V Output ports
YPrPb, RCA with CVBS, HDMI 1.3, Left/Right analog audio output(RCA)
Aspect Ratio
Auto, 16: 9 Pillar box, 4: 3 Pan & Scan, 4: 3 Letter Box.
Audio Decoding
MPEG1 Layer I, MPEG1 Layer II, MPEG 1 Layer III, MPEG2, AC3.
Audio Mode
Stereo/MONO/Left/Right
DVR supporting
DVR with USB HDD, Time shifting with USB HDD
USB2.0 High Speed Host
1USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card or FW Upgrading.
File System
FAT12, FAT16, FAT32, NTFS
Media Supporting
JPG, BMP, MP3, WMA
Ethernet Interface
10Mbit
Storage Temperature
0º C To +50º C
