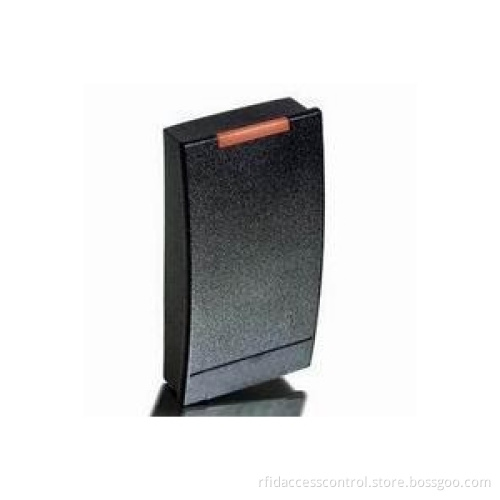

HID Card Compatible Reader (YET-R10)
HID Card Compatible Reader
RFID Reader supplier, UHF RFID Reader manufacturer, FID Reader, Passive RFID Reader company, RFID Reader factory
HID compatible proximity card reader. It reads all HID standard 125kHz proximity card serial number and transmits it to the access control system using the common Wiegand interface or any other OEM interface requirements in the future
1. Specification:

Voltage DC9V
Current < 50 mA
Interface: Weigand26/34, RS485/232
Reader Range: 5 - 10 cm
Frequency: 122-128kHz
Operation Temperature: -20° C to +65° C
Operationg humidity: 5%-95% relative humidity non-condensing
Audio/Visual Indication: Green & Red and Buzzer signal output
Response Time: Less than 0.2 seconds
Cable length: 250mm
Waterproof: IP65
