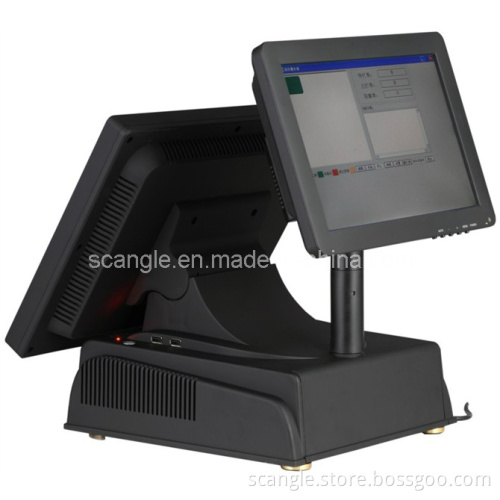

All in One POS Terminal SGT-669

Name: 15' touch POS dual-LCD (auxiliary screen for ads)
Color: Completely black
Dustproof & Waterproof Grade: IP65
Optional: 3-track magnetic stripe card reader
Mainboard Unit
Mainboard: Intel® AtomTM Processor D425
CPU: Intel® Atom 1.8G
Chipset Intel 945GSE+ICH7-M FSB 533MHz
Memory: 2G DDRIII slot, supporting 4GB max.
Graphics Card Max. 224MB dynamic graphics memory
Storage Device
Standard configuration: 320G SATA 2.5 hard disk
Main Screen
15' TFT LCD
Brightness 250CD /M
Resolution 1024*768(max)
Touch Screen 5-wire resistance touch screen made in Taiwan
Visual Angle
Horizontal: 120 vertical: 110
Auxiliary Screen Display
LCD 10.1' TFT LED
Brightness 250CD /m
Visual Angle

Horizontal: 120 vertical: 110
Resolution 1024*768(max)
Front I/0 Control Button
Power: On/off button for monitor
Menu: Button for some menus
Select button for value addition of some menus
Select button for value minus of some menus
AUTO: Adjustment button for image optimization
External I/0
Front I/O Interface
2*USB(2.0) 1* power button 1* reset button
Back I/O Interface
PS2 mouse standard *1 PS2 keyboard*1
Board serial port*1 internal extension serial port*2
LTP print port*1
VGA(15Pin D-SUB)*1
RJ-45 internet port*2
USB(2.0)*4
Audio output port*1
Speaker port*1
DC 12V output *1
Operating Temperature 0 to 40degress
Storage Temperature -10 to 4degreess
Power Input AC 100V-250V wide range input
Size 247*378*80(mm)
Power Consumption 70W(max)
Electromagnetic Compatibility/Safety FCC Class A / CE Mark / LVD / CCC
Operating System Windows XP Professional, Windows XP Embedded, WEPOS, Linux
