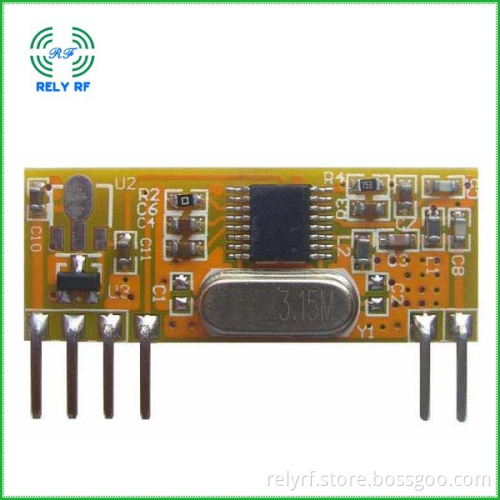

RF Module (WR-RY-07)

RF Module

This wireless high-frequency RF receiver module WR-RY-07 is a high sensitivity OOK receive module. Lost cost, high stable also can provide the best RF solution in the market. Frequency is 315/433.92/868/914.5MHz and receiver structure is superheterodyne, received signal is OOK. After received signal, it will output COMS signal to external decoder IC for decoding. It is convenience to applicate in different products and external components is not necessary to make products be wireless also bring value-added for your products...

Key Feature:
Lost cost 315/433.92/868/914.5MHz RF Receiver Module
Build-in AGC
Low Working Voltage 3.0V~5.5V
Low Current 315MHz/433.92MHZPower down mode with very low supply current (30nA typ)
High Sensitive -110dBm
Data Rate: 4.8kbps
Operating Temperature: -40~+85
Dimension: 31.5mm(L)*12.1mm(W)*5mm(H)

Application:
Security System
Wireless Remote Control Car
Wireless Remote Control Robot
Automatic Power Switch Control

Notes:
Antenna: Length = 22.6cm for 315MHz; Length = 17 cm for 433.92MHz.
