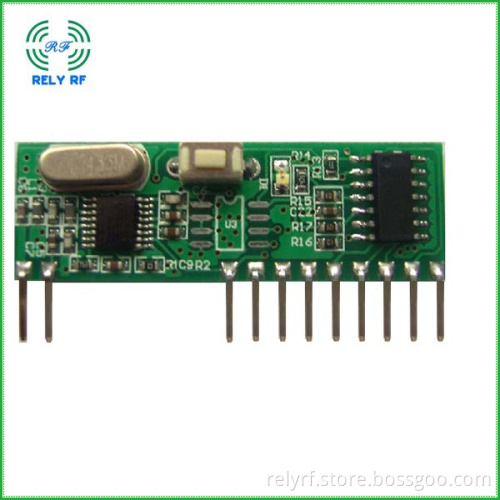

Learning Code Decoding Receiver Module (WR-RYM-02)

The RYRM02 is learning/rolling code decoding receiver modulethe module based on PT2272 remote control decoder, provides better anti-jamming and stability due to the having superheterodyne receiving IC, preamplifier, narrowband ceramic filter and saw resonator 315MHz and 433.92MHz are available etc.

Features:

Small size
High stability
Rolling/learning code
Low power consumption
4 channels ttl output; Easy to use

Parameters:
Frequency: 315/433.92MHz
Voltage: 3~5V
Datarate: 4.8kbps
Sensitivity: -110dBm
Current: 12mA
Dimension: 43*17*5mm
Modulate mode: Ask/am (rolling clde)
Workingtemperature: -30-85 degree
4 channels ttl output, easy to use(latch or momentary output type set ex-factory )
Trong anti-interference capabilities, long distance, and cost-effective
Superheterodyne modulation and rolling code chip

Application:
Car remote control, GPS, GSM, industrial control, the security system, and other wireless products.
