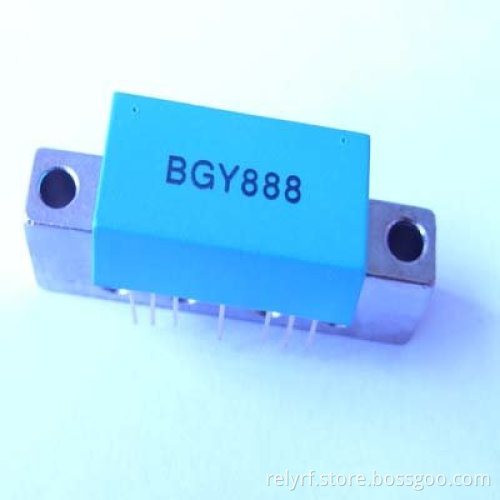

CATV Amplifier Module BGY888
Feature
Excellent linearity
Extremely low noise
High gain
Excellent return loss properties
Application
Single module line extender in CATV systems operating in the 40 to 860 MHz frequency
Range...
DESCRIPTION
Hybrid high dynamic range amplifier module operating at a supply voltage of 24 V (DC) in
A SOT115J package. The Module consists of two cascaded stages both in cascode
Configuration.
Note:
1. Fp=49.75MHz; Vp=44dBmV;
Fq=8.7.25MHz; Vq=44dBmV;
Measured at fp+fq=857.00MHz.
2. Measured according to DIN45004B;
Fp=847.25MHz; Vp=Vo;
Fq=855.25MHz; Vq=Vo-6dB;
Fr=857.25MHz; Vr=Vo-6dB;
Measured at fp+fr-fq=849.25MHz.
3. The module normally operates at VB=24V, but is able to withstand supply transients up to 28V.
PACKAGE OUTLINE
Rectangular single-ended package; Aluminium flange; 2 vertical mounting holes;
2 X 6-32 UNC and 2 extra horizontal mounting holes; 7 gold-plated in-line leads
SOT115J
