12V/24V Latching Momentary Remote Control Switch for Lights, Garage Doors
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen of China |
|---|---|
| Payment Type: | T/T, Paypal, Money Gram, Western Union |
Product Description
Product Description
12V/24V Latching Momentary Remote Control Switch for Lights, Garage Doors
1. Brief introduction
Our factory design and produce the Six Channels wireless intellect receiving control what can provide switch
signal to the six relays, so it can meet many requirements such as: control motor's TTTcorotationTTT and reversal,
the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security line
This kind of wireless receiving control is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learnt control can not work if you delete the memory message of the receiving control, however it could learning again by the owner if want to obtain the right of use. There are 3 kind of output ways- signal self-self locking; signal interlock; signal inching.
2. The way of output
1. Signal inching Number 1 key learning
2. Signal interlock - Number 2 key learning
3. Signal self-self locking- Number 4 key learning
(check the Circuit diagram for details)
3. Learning way and steps
1. Press learning key of receiver-indicate enter into the status of learning as you hear the sounds of buzzer.
2. Press any button of the remote control-indicate learning success as you hear the sounds of buzzer.
4. Delete memory message
Press the learning button of the receiver about 7 seconds until the LED light is extinguished, which indicate success to delete the memory message.
5. Paramenters:
Working voltage:DC12V/ 24V(optional)
6. Circuit diagram for your reference
![12V/24V Latching Momentary Remote Control Switch for Lights, Garage Doors]()

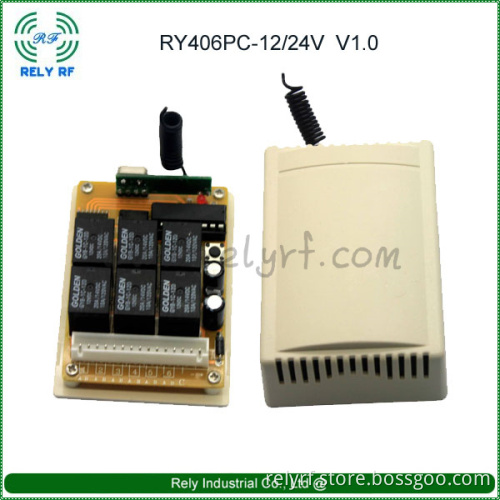

7. There are 2 types for RY406PC, you can choose V1.0 or V2.0
![12V/24V Latching Momentary Remote Control Switch for Lights, Garage Doors]()
There are 3 types remote controls with 6 buttons can match this controller.
![12V/24V Latching Momentary Remote Control Switch for Lights, Garage Doors]()
All of the parts meet CE and FCC certificates.
1. Brief introduction
Our factory design and produce the Six Channels wireless intellect receiving control what can provide switch
signal to the six relays, so it can meet many requirements such as: control motor's TTTcorotationTTT and reversal,
the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security line
This kind of wireless receiving control is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learnt control can not work if you delete the memory message of the receiving control, however it could learning again by the owner if want to obtain the right of use. There are 3 kind of output ways- signal self-self locking; signal interlock; signal inching.
2. The way of output
1. Signal inching Number 1 key learning
2. Signal interlock - Number 2 key learning
3. Signal self-self locking- Number 4 key learning
(check the Circuit diagram for details)
3. Learning way and steps
1. Press learning key of receiver-indicate enter into the status of learning as you hear the sounds of buzzer.
2. Press any button of the remote control-indicate learning success as you hear the sounds of buzzer.
4. Delete memory message
Press the learning button of the receiver about 7 seconds until the LED light is extinguished, which indicate success to delete the memory message.
5. Paramenters:
Working voltage:DC12V/ 24V(optional)
Static working current :≤7mA
Working temperature:-40 - +80 degree
Receiving sensitive:≥-105dBm
Working frequency:315MHz,433MHz
Output voltage:alternating current or direct current
Output current:≤10A
channel:6
Size:74.5mm*54.5mm*27mm
7. There are 2 types for RY406PC, you can choose V1.0 or V2.0
There are 3 types remote controls with 6 buttons can match this controller.
All of the parts meet CE and FCC certificates.
