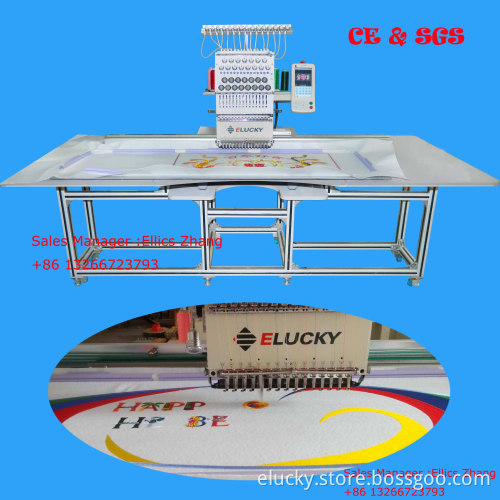

Big Computerized Flat Embroidery Machine for Flat/Cross-Stitch/Cap Embroidery (EG1501CL)

Get Latest Price

Payment Type:: L/C, T/T, Western Union, cash or as Negotiator

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T, Western Union, cash or as Negotiator

Product Description

Computerized Flat Embroidery Machine with CE Certificate for Flat/Cross-Stitch/Cap Embroidery (EG1501CL)

EG1501CL is single head computerized embroidery machine with 15 needles, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery.Working area up to 360*1200mm
Big Computerized Flat Embroidery Machine for Flat/Cross-Stitch/Cap Embroidery (EG1501CL)

I. Main features

1. Suitable for flat embroidery, cap embroidery and finished garments embroidery
2. Automatic thread trimmer
3. Maximum speed 1200 SPM
4.270° Wide cap frame unit
5. Color LCD display showing real time stitching
6. USB input port
7. Automatic color change
8. Thread break detection
9. Pre-sew design trace capable
10. Memory size 2, 000, 000 stitches
11. Emergency stop
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Built-in bobbin winder

II. New Features

1.110V or 220V self-adaptable power supply. No more external power box needed.
2. Only 150W power consumption.
3. Mainboard is built into the control panel, which reduces the possibility of damage by dust or external force.
4. Support large capacity of USB flash drive from 2GS and upwith faster data transmission and more compatibility
5. Proper shut-down function powers off only moving parts such as X&Y axis and needle bar, but still keeps the data on screen when the emergency button is pushed.
6. Precise digital degree on stop point: Main shaft can be turned to any angle digitally with the number of degrees shown on the screen.
7. Cap to flat (or vise versa) embroidery mode switch eliminating the possibility of hitting the frame.
8. Keeping original file names in memory makes it easy to manage designs.
9. Lay-out of keys on panel is more user-friendly.
10. Real time and date is showing on screen.
11. High speed up to 1200 SPM.
12. Memory size up to 2 million stitches and 200 designs

III. Compact control panal

1. Color LCD display showing real time stitching
2. Manual Color Change
3. Function keys including Menu, Speed up and Slow down (PageUp and PageDown), etc.
4. Multi languages available
5. Frame-moving keys
6. Manual Trimming
7. Start, Stop, and emergency Stop
8. Embroidery Status 9. DOT key to return to 100 degrees,
9. DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
10. On-board lettering
11. Numeric keys for selection of needles

IV. Hoops/frames inclued

A. 2 X Shirt Front Round Hoop 9 cm (3.5")
B. 2 X Shirt Front Round Hoop 23 cm (9")
C. 2 X Shirt Front Round Hoop 12 cm (4.7")
D. 2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
E. 2 X Shirt Front Round Hoop 15 cm (5.9")
F. 1 X Sash Frame 56 X 38 cm (22" X 15")

IV. Cap attachment, tool box, USB driver
Big Computerized Flat Embroidery Machine for Flat/Cross-Stitch/Cap Embroidery (EG1501CL)

Other attachment

1)Table and stand with wheels for easy moving around
2)Operation Manual
3) Tool Kit

Optional Function:

1. Single sequin embroidery and double sequin embroidery function
2. Boring embroidery function
3. Simple cording embroidery function
4. Simple coiling embroidery function

All spare parts will come together with Commercial Single Head Computerized Embroidery Machine with Touch Screen Computer and Big Working Area EG1501CL for Flat Embroidery in one case.

Commercial Single Head Computerized Embroidery Machine with Touch Screen Computer and Big Working Area EG1501CL for Flat Embroidery is an efficient and stable machine with high speed 1200spm. It will be your good and right choice.

Embroidery samples:

Big Computerized Flat Embroidery Machine for Flat/Cross-Stitch/Cap Embroidery (EG1501CL)

Needles	Head	Emb. Area (mm)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)
6/12 or 15	1	360*510	800	800	1600	180
6/12 or 15	1	360*1200	1400	800	1600	210
