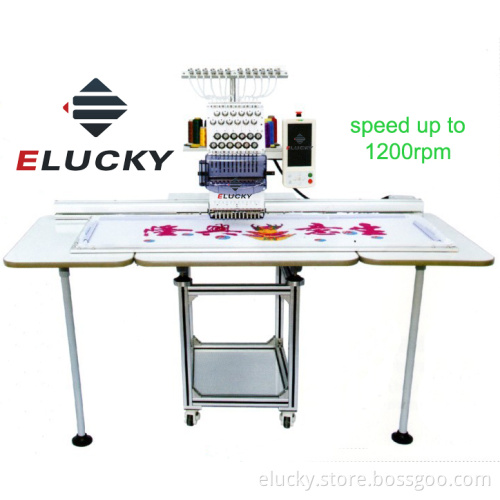

Embroidery Machine Single Head with Touch Screen for Garment /Cap Embroidery (EG1201C)

Embroidery Machine Single Head with Touch Screen for Garment /Cap Embroidery (EG1201C)

EG1201C is single head computerized embroidery machine with 12 needles, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery.



I. Main features

1. Suitable for flat embroidery, cap embroidery and finished garments embroidery
2. Automatic thread trimmer
3. Maximum speed 1200 SPM
4.270° Wide cap frame unit
5. Color LCD display showing real time stitching
6. USB input port
7. Automatic color change
8. Thread break detection
9. Pre-sew design trace capable
10. Memory size 2, 000, 000 stitches
11. Emergency stop
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Built-in bobbin winder

II. New Features

1.110V or 220V self-adaptable power supply. No more external power box needed.
2. Only 150W power consumption.
3. Mainboard is built into the control panel, which reduces the possibility of damage by dust or external force.
4. Support large capacity of USB flash drive from 2GS and upwith faster data transmission and more compatibility
5. Proper shut-down function powers off only moving parts such as X&Y axis and needle bar, but still keeps the data on screen when the emergency button is pushed.
6. Precise digital degree on stop point: Main shaft can be turned to any angle digitally with the number of degrees shown on the screen.
7. Cap to flat (or vise versa) embroidery mode switch eliminating the possibility of hitting the frame.
8. Keeping original file names in memory makes it easy to manage designs.
9. Lay-out of keys on panel is more user-friendly.
10. Real time and date is showing on screen.
11. High speed up to 1200 SPM.
12. Memory size up to 2 million stitches and 200 designs

III. Compact control panal

1. Color LCD display showing real time stitching
2. Manual Color Change
3. Function keys including Menu, Speed up and Slow down (PageUp and PageDown), etc.
4. Multi languages available
5. Frame-moving keys
6. Manual Trimming
7. Start, Stop, and emergency Stop
8. Embroidery Status 9. DOT key to return to 100 degrees,
9. DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
10. On-board lettering
11. Numeric keys for selection of needles

IV. Hoops/frames inclued

A. 2 X Shirt Front Round Hoop 9 cm (3.5")
B. 2 X Shirt Front Round Hoop 23 cm (9")
C. 2 X Shirt Front Round Hoop 12 cm (4.7")
D. 2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
E. 2 X Shirt Front Round Hoop 15 cm (5.9")
F. 1 X Sash Frame 56 X 38 cm (22" X 15")


Other attachment

1)Table and stand with wheels for easy moving around
2)Operation Manual
3) Tool Kit

V. Built-in Network

You can control several one head embroidery machines by one computer.

Main Outfit:

1. New type single head embroidery machine
2. Dahao new type high-tech color computer, BMW painting, Japan Hirose hook, Organ needle, Italy belt, Auto-trimmer
3. Arm-type tubular/cylindrical frame machine, big wheel for movement, with inside drawer

Optional Function:

1. Single sequin embroidery and double sequin embroidery function
2. Boring embroidery function
3. Simple cording embroidery function
4. Simple coiling embroidery function

Service

1. Pre-sale & in-sale services

1) Training: After the acceptance check by the buyer, the supplier offer the free training for 2-3 operators and maintenance persons of the buyer. Training and installation time is 3-5 days

2. After-sale services

Our company offer One-year warranty and lifetime maintenance for the buyer, during thewarrantyperiod, if there is any fault in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance, the parts which need to change also provided by us(except the consumable parts). After the warranty period, we will charge appropriately according to the maintenance situation.
