33X CCTV IR High Speed Dome PZT Camera

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 5 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	shenzhen
Productivity:	20000/momth
Supply Ability:	20000/momth
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, FCC, RoHS
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

This PTZ CCTV Camera is a full size outdoor PTZ camera and comes with a wall mount as the default bracket. You can purchase optional brackets using the drop down above. The security camera is rugged and weather proof IP66 rated to withstand rain, snow, and dirt. This PTZ CCTV Camera is made with quality components and built to last. It also has 360° continuous pan ability and the auto-flip feature when it reaches the top or bottom of the field of view to look on the other side. The PTZ Surveillance Camera also offers Digital Wide Dynamic Range (DWDR) to help minimize sun glare.

Features:

* 7'', double layer metal body construction, IP66

* 1/3'' 2.0M Piexl Sony CMOS

* High definition 1080P,33x Zoom

*OSD menu available, IR Range:150m

*Long distance transmission up to 500 meters over coax cable

* Real time transmission ,lossless video

* Pan/Tilt/Zoom, A-B scan, tour available

Specifications:

Specifications
Product Name	7" 20X/36X 2.0MP CCTV IR High Speed Dome Security PZT AHD Camera
Model NO.	WDM-AHD6855HR-20X	WDM-AHD6855HR-33X
Camera
Image Sensor	1/3'' 2.0M piexls CMOS Nextchip 2441+Sensor Sony 323	1/3'' 2.0M piexls CMOS Nextchip 2441+Sensor Sony 323
Lens	lens 20X Zoom f=4.7mm~84.6mm	lens 33X Zoom =4.6mm~165mm
Image Resolution	HD:1080p/30fps /1080p/25fps
Effective Pixels	2.0MP(1920x1080)
TV System	PAL/NTSC
Electronic Shutter	AUTO/ 1/50 (1/60)-1/100,000sec
Min.illumination	0.05lux (color), 0.005lux (B/W), 0lux (IR)
S/N Rate	>=50db
White Balance	Auto
IR-Cut	Auto
IR Control	PWM
IR Range	150m
Dome
Horizontal Rotation Range	360°
Title Rotation Range	90°
Pan speed	200°/sec
Tilt Speed	100°/sec
Ratio Speed	Support
Preset Points	220
Guard Tours	3 Groups
Guard Points	Max.16 points
OSD Menu	Multiple languages for OSD Menu
Park time	1-60mins setting available
Baud Rate	1200/2400/4800/9600bps
Video Output	AHD/CVI/TVI/CVBS selectable
Communication mode	UTC&RS485 Coaxial cable
General
Certification	CE, FCC, RoHS
Operating Temperature	-20℃ - +60℃
Operating Humidity	<=95%
Power supply	DC12V4A
Lightning Protection	Transient voltage 6000V

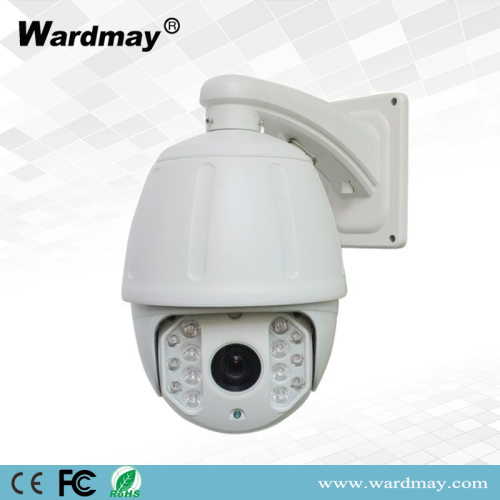

Product pictures:
