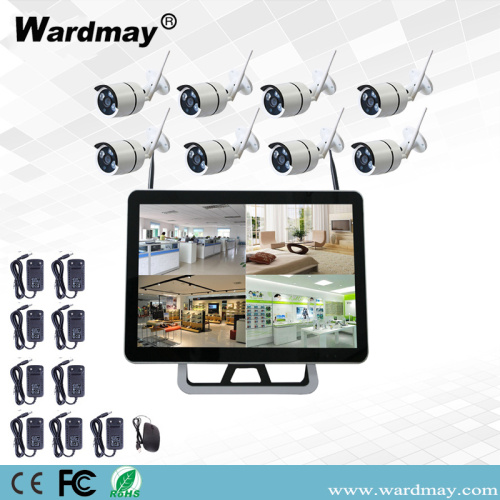

8CH 1.3/2.0MP Wifi NVR Kits With 22" Monitor
  • 8CH 1.3/2.0MP Wifi NVR Kits With 22" Monitor
  • 8CH 1.3/2.0MP Wifi NVR Kits With 22" Monitor
  • 8CH 1.3/2.0MP Wifi NVR Kits With 22" Monitor
8CH 1.3/2.0MP Wifi NVR Kits With 22" Monitor
8CH 1.3/2.0MP Wifi NVR Kits With 22" Monitor
8CH 1.3/2.0MP Wifi NVR Kits With 22" Monitor

8CH 1.3/2.0MP Wifi NVR Kits With 22" Monitor

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, CIF, EXW
Min. Order:
10 Set/Sets
Min. Order:
10 Set/Sets
Delivery Time:
3 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 20000 per/month
Supply Ability: 20000 per/month
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,CIF,EXW
Certificate: CE, FCC, RoHS
Transportation: Ocean,Land,Air
Port: Shenzhen
Product Description
Product Description

Setup your wireless IP surveillance cctv system with this latest design Wi-Fi NVR kit from Covert Secure.This Professional WiFi NVR kits supports high definition recording & playback at maximum resolution of 1280x960/1920x1080 at 25/30fps. This kit contains everything you needed to setup a complete wireless IP surveillance security system. One set 8 channel 960P/1080 network video recorder can connect up to 8 IP camera, and support video Recording/playback in 960P/1080 resolution at 25/30fps. Supporting USB mouse operation and advanced web function to allow remotely live view from both PC browsers and Smartphone applications. This NVR supports one SATA HDD and maximum storage size is 4TB with HDMI interfaces for local Video output.

Features

* 8CH 960P/1080P WiFi NVR(Network Video Recorder)
* Indoor/outdoor 20-30m WIFI 1.3/2-0 Megapixel IR waterproof IR Bullet IP Camera with adaptor, bracket.
* Plug and Play,no need network paring
* strong ability of singnal transmit up to crossing 1 to 4 walls, wifi distance:80-300 meters
* APP: XMEye

Specifications

 IP Cameras specifications
 Operating System  Embedded linux
 Image Sensor  1.3MP 1/3'' Progressive Scan Sensor  2.0 MP 1/3'' Progressive Scan Sensor
 Resolution  960P  1080P
 Frame Specification  H.264 1280*720@25fps  H.264 1920x1080@25fps
 S/N Ratio  >39.1dB
 Minimum Illumination  Color:0.1 Lux; B/W:0.01 Lux
 Lens  3.6MM
 Infrared distance  20-30m
 Waterproof  IP66
 White Balance   Auto
 Day&Night  IR cut filter with auto switch
 3D-DNR  Auto
 Privacy Masking  4 Zone Selectable
 Infrared lamp  3pcs X 20 Lamp beads
 Power Input  DC12V1A(4pcs)
 Consumption  max 6W
 Interface  RJ45/WIFI 802.11b/g/n
 Operation temperature  -10ºC to +50ºC /30% to 80% RH
 WIFI NVR Specifications
 System
 Operating System  Embedded linux OS
 Main processor  Hi 3520D  Hi 3536D
 System resources  Simultaneous multi-channel real-time recording, playback, network operation, USB backup
 Interface
 Operator interface  16-bit true color graphic menu operation interface, support mouse operation
 Preview  1/4
 Video input (IP)  8*960P  8*1080P
 Access bandwidth  24Mbps
 Forwarding bandwidth  25Mbps
 Video compression  H.264  H.265+
 Display quality  Max 960P  Max 1080P
 Playback quality  960P  1080P
 Decode  8*960P  8*1080P
 VR  Unsupport
 Motion detection  Support(depend on camera)
 Audio
 Audio compression  G.711A
 Intercom  Unsupport
 Record & playback
 Recording mode  Manual>Alarm>Dynamic Detection>Timing
 Local payback  4*960P  4*1080P
 Search mode  Search by Time/Calendar/Event/Channel
 Record storage  HDD.Network
 Backup mode  Network backup, USB hard disk, USB burner, SATA burner
 External Interface
 Video output  1ch VGA,1ch HDMI HD output
 Audio I/O  0/0
 Alarm I/O  0/0
 Network interface  1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
 USB interface  2*USB2.0 ports
 HDD  1* SATA(Up to 8TB for each disk)
 ESATA  No
 Serial interface  No
 Other
 ONVIF  No
 Power supply  12V/2A
 Power Consumption  <10W(Without HDD)
 Work environment  Temperature:0-+55 , Humidity:10%-90%RH , Atm:86kpa-106kp
 Package Informations
 Wifi NVR  1 set
 Camera  8 pieces
 Network line   1m*1
 Power adapter  DC12V2A(1 pcs); DC12V1A(8 pcs)
 USB Mouse  1 piece
 User Manual  1 piece
 Screw bag  8 pieces

Product Show

Cctv Security System For HomeWireless Ip CamerasNvr Cctv CameraNvr Recorder For Ip Cameras

Hikvision Wifi Nvr Kit


Cctv System

How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated

Payment Terms
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;

Lead Time:

1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.

Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!

Warranty Policy

We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support.  In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
7) Credible WARDMAY


Contact us:
------------------------------------------------------------
Mary Lee(sales manager)
Tel: +86-075584575180                                                       Mobile/Whatsapp: +86-15915495854

Skype: marylee0221                                                           Company Web: www.wardmay.com

Web http://wardmay-cctv.en.made-in-china.com            Retail Web: https://www.aliexpress.com/store/5125026
Address: 403, 4 Floor, MaYi Pioneer Park, Ru Yi Road, Ai Lian, Long Gang, ShenZhen, China, 518100
