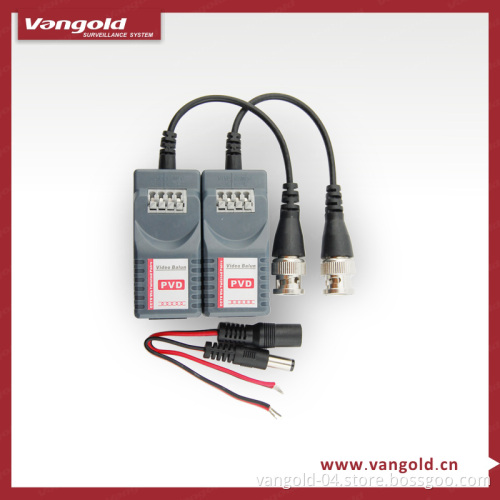

CCTV UTP Video Balun (1 CH Passive) (VG-T316T/R)
- Payment Type:
- T/T, Western Union, Paypal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T, Western Union, Paypal |
Product Description
Product Description
1CH Passive UTP Video Balun Feature:
1. 1CH Passvie Power/Video/Audio or Data/DATE PVD Video Transceiver
2. DC-6MHz Common-mode/Differential-mode
3. Rejection: 15kHz -6MHz 60dB typ 60dB typ
4. Impedance: Coax, male BNC: 75Ω UTP (Screwless) Terminal Block or UTP RJ45 Data Connector: 100Ω
5. One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal: DC Loop Resistance 52 ohms per 1, 000 ft (18 ohms per 100m)
6. UTP Port: RJ45
7. Dimensions(mm): 43*20*2.1
8. Weigth: 35 (g)
9. Environment Temperature: -10~+50° C
10. Humidity: 0~95%
1. 1CH Passvie Power/Video/Audio or Data/DATE PVD Video Transceiver
2. DC-6MHz Common-mode/Differential-mode
3. Rejection: 15kHz -6MHz 60dB typ 60dB typ
4. Impedance: Coax, male BNC: 75Ω UTP (Screwless) Terminal Block or UTP RJ45 Data Connector: 100Ω
5. One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal: DC Loop Resistance 52 ohms per 1, 000 ft (18 ohms per 100m)
6. UTP Port: RJ45
7. Dimensions(mm): 43*20*2.1
8. Weigth: 35 (g)
9. Environment Temperature: -10~+50° C
10. Humidity: 0~95%
