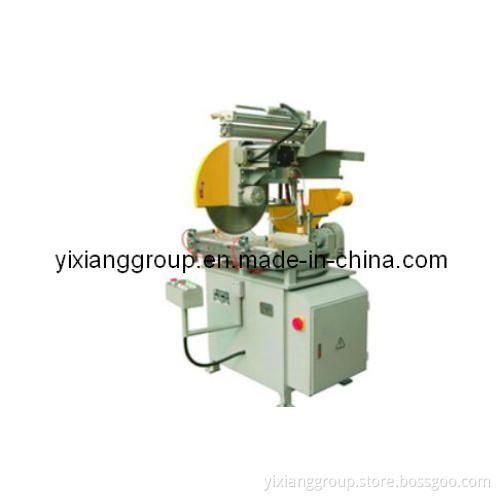

2- Axis Multi-Function Single Head Saw

2- axis Multi-function Single Head Saw

This cnc machine is mainly used for cutting and laying off aluminum metal alloy curtain wall materials and window materials, and also used for cutting and laying off plastic profile. It utilizes hard alloy saw blade for outside diameter as big as 16' as well as high linear speed and high processing precision, The machine tool contains positioning rack, and optional digital display can be added on customer's requirement, resulting in accurate positioning. Its saw head offers 90 -45 angles as required and its worktable can be rotated between(-45° ) -90° To(+-45° ), ideal for cufting aluminum doors/windows and aluminum curtain wall materials in different angles.

Main Technical Parameter
1 Saw cutting length...0~3000mm
2 Saw cutting(W× L)...200× 150mm
3 Main motor power...2.2KW
4 Main motor rotaty speed...2840r/min
5 Saw blade feeding speed...O~3m/min
6 Saw blade return speed...2~3m/min
7 Saw blade dimension...Φ 500× Φ 30× 120T
8 Operation air pressure...O. 6~0.8Mpa
9 Operation voltage...380V
10 Cylinder rotary speed...600mm
11 Tilting angle of B axis...-45° ~ 90° ~ + 45°
12 Tilting angle of C axis...45° ~90° ~150°
13 Moving length of saw blade...200mm
14 Overall dimension(L× W× H)...9000× 1300× 1260mm
15 Weight...900Kg
