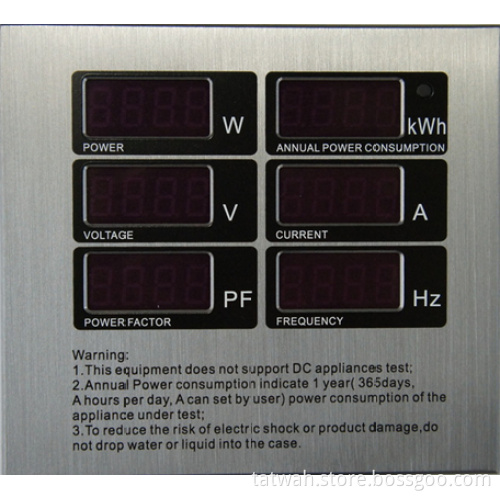

LED Light 6-in-1 Multi-Function AC Meter

Specifications

6-IN 1: Voltage, Current, Power, Power Factor, Annual Electricity Calculation, HZ



Instruction:
First, use:
This product uses high-precision, high stability of the integrated computer chip, measurement
Accuracy, strong anti-interference. Mainly used for testing (LED display) load current flowing
Through the current, voltage, frequency, power factor, active power, and on the translation of
Year cumulative active power (8 hours per day, 365 days a year to test the current cumulative
Active power load; Note: The daily working time is adjustable).



2. The main technical indicators:
1. Input voltage range: 88V ~ 275V 50/60Hz
2. Test voltage range: 88V ~ 275V 50/60Hz
3. Test load capacity: 275V/10A
4. Measurement Accuracy: Current 0.2, voltage 0.5.
3. Explicit Declaration:
1. The active power (POWER)
Display range: 0 ~ 2200W
The power minimum resolution: 0.001W
2. The annual electricity consumption power.
ANNUAL POWER CONSUMPTION
Display range: 0 ~ 9999 KW
Power minimum resolution: 0.001KWH
3. The voltage (voltage)
Display range: 65 ~ 2705V AC
Voltage Minimum display resolution: 0.001V
4. The current (current)
Display range: 0 ~ 10 A AC
Current Minimum display resolution: 0.001A
5. Power factor (POWER factor)
Display range: 0 ~ 1.000 PF
6. The frequency (FREQUENCY) Display range: 45 ~ 65 Hz
