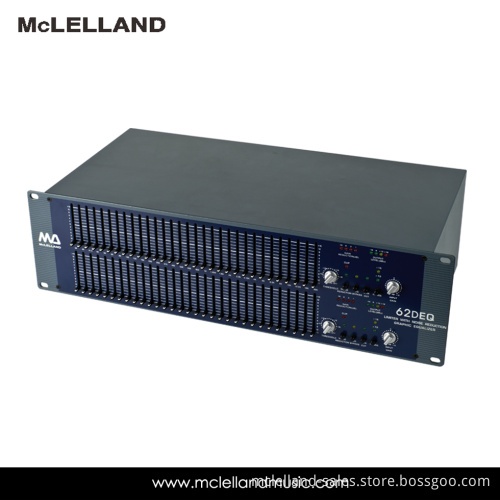

2X31band, 1/3 Octave Graphic Equalizers (62DEQ)

2x31Band, 1/3 Octave Graphic Equalizers (62DEQ)
Features:

High definition EQ
Noise Reduction capable of restoring up to 20dB S/N ratio
Limiter for system protection
High performance/low noise circuitry
30mm/45mm slider with center detent
18dB per octave 50Hz low cut filter with status LED
Signal bypass switch with status LED
Output Level LEDs(-12 to+12dB)and Gain Reduction LEDs
Europe Block, balanced XLR and 1/4'' TRS I/O jacks
Selectable Range Switch at +/-7.5dB or +/-15dB

Specification:

Bands: 2*31, 1/3 Octave
Input Impedance: 10kΩ (Bal)
Maximum Input Leve: +24dBm
Output Impedance: 100Ω (Bal)
Maximum Output Level: +23dBm(Bal 600Ω )
Dynamic Range: 118dB
Signal/Noise Ratio: 115dB
THD: Frequency Response: 10~50KHz. ± 0.5dB
Power Requirement: External Power Supply 120VAC, 50/60Hz(230VAC available)
Connectors: 1/4" TRS, XLR, Barrier terminal strip
Noise Reduction: Up to 20dB lf dynamic broadband noise reduction
