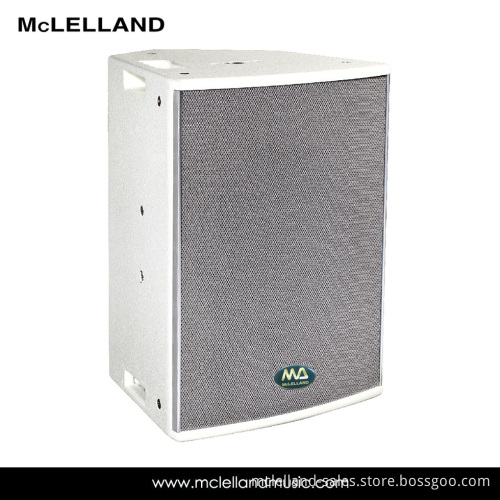

Passive Coaxial Full Range Speaker (MM-12)

Features:

*Trapezoidal design , suitable for sound in short distance
*High power and low distortion ,perfect representation of timbre
*Unique combinition of golden aluminum horn and bass paper disc
*Optimized technology and configuration
*Compact design,delicate appearance,imported birch plywood enclosure

Components	LF: 1x12"
	HF: 1x1.73"
Frequency Response	49Hz–20kHz(±3dB)
Sensitivity(1W/1M)	98dB
Maximum Peak SPL	124dB
Rated Power(RMS)	400 W
Peak Power(PEAK)	800 W
Impedance(Ohm)	8 Ohm
Crossover	2 KHz
Dispersion Angle	90 Coaxial Symmetry
(-6dB)
Connectors	2xNL4 Speakon
Enclosure Material	High-strength Plywood
Cabinet Finish	Germany Water Paint
Protective Grille	Steel Grille+Carpet
Dimensions (mm)	390*380*530
(W*D*H)
Net. W.	23 kg
