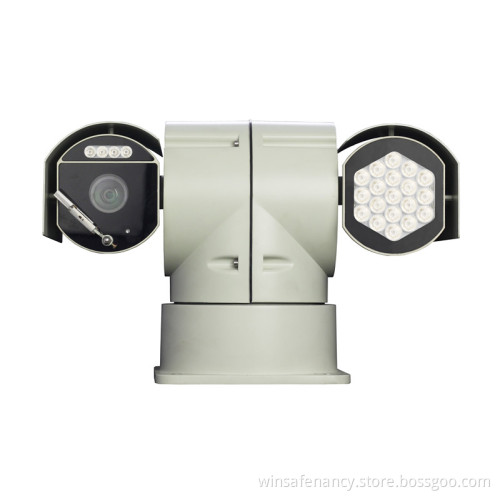

36X Intelligent High Speed PTZ Camera for Cars (WS-TC3600)

Features
With infrared LED range up to 120 meters
Weather proof design, high die-cast aluminum casing, protection grade IP66
With wiper
Super shockproof, especially suitable for car surveillance
360º Continuous pan, +/-90º Tilt
8 cruising routes
256 presets
Specification
Model No. WS-TC1804WS-TC2800WS-TC3600E
Signal FormatPAL/NTSC
Camera ModuleSONY
FCB-EX490E(P)Sony New E sereis
FCB-EX985E(P)Sony New E Series
FCB-EX1020(P)
Resolution550TVL
S/N RatioNot less than 50dB
Min. Illumination0, 01Lux0.0015Lux0.01Lux
Day/NightYes
WDRYesNoYes
Optical zoom18X28X36X
Digital zoom12X
LensF1.4-F3.0, f=4.1-73.8mmF1.35-F3.7, f=3.5-98mmF1.6-F4.5, f=3.1-122.4mm
AGCAuto/Manual
BLCOn/Off
Pan/Tilt SpeedPan: 0.05~60° /sec; Tilt: 0.03~40° /sec
Presets SpeedPan: 100° /sec; Tilt: 60° /sec
Pan/Tilt RangePan: 0° ~360° Continuous; Tilt: -90° ~ +90°
Presets256
Auto CruiseAuto switch from 1 to 30 preset positions sequentially
Pattern Scan4 routes of pattern scan
Comm. PortRS485
Baud Rate2400BPS, 4800BPS, 9600BPS, 19200BPS
Humidity90% no condensation
Working Temp. -35° C~+55° C
Power SupplyDC12V - 16V
ShockNot less than 4G
Weight6kg
