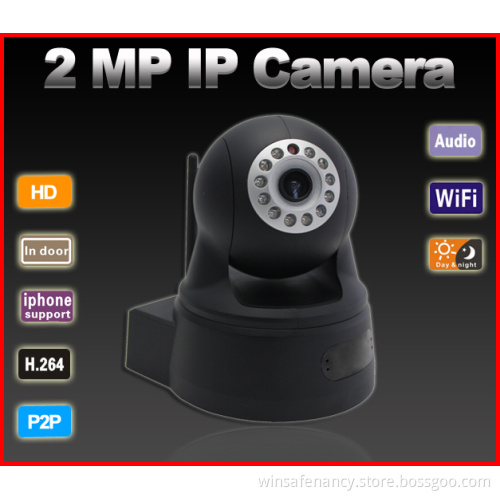

WiFi IP IR PTZ Cameras for Home (WS-HM01A)

Features
2.0Megapixel CMOS Sensor
3.6MM Lens
12 LED light, 8-10M Infrared Lamp Range
H. 264 Compression Format
Support P22
Transmission up to 15FPS/2MP
Support two way audio
DC5V, 2A
Support latest Onvif protocol
Specification
ModelWS-HE01RA
Device2.0 Megapixel CMOS Sensor
Size1/4 inch
Effective Pixels2MP: 1600 * 1200, 1MP: 1280*720
Min. Scene IlluminationColor0.5Lux(IR ON)
B/WYes
IR SensitivityYes
IR CutYes
Lenslens3.6mm
Viewing AngleHorizontal 355° Vertical 90°
Linux System Internal Linux system
Day/NightIR Distance8-10M
FunctionMotion detectionYes
BLCYes
AGCAuto
White BalanceFixed Aperture F1.2
S/N RatioS/N Ratio>50 dB
Video CompressionCompressionH. 264
Picture ResolutionMain flow:
1600*1200@15fps
1280*720@25fps
Minor Flow:
640*360@25fps
160*112@25fps
Bit rate32 K~ 4.0 M BPS
Image Frame Rate15FPS
AudioCompressionG. 711
Two way audioSupport
Alarm I/OAlarm I/O1 channel in/out put
NetworkEthernetEthernet(10/100 Base-T), RJ45 connector
ProtocolHTTP/DHCP/IP/TCP/UDP/DDNS/RTSP/SMTP; WiFi/802.11/B/G
SoftwareWeb BrowserSupport Internet Explorer, Firefox, Google
Mobile PhoneSupport iPhone, Android
RemoteSupport DDNS, P2P
OperationTemperature-10° ~60° C
Humidity20— 80%
PowerPower ConsumptionDC5V, 2A
PhysicalDimension100*99*118MM(L*W*H)
Weight0.5KG
ApprovalsCertificationCE, FCC
