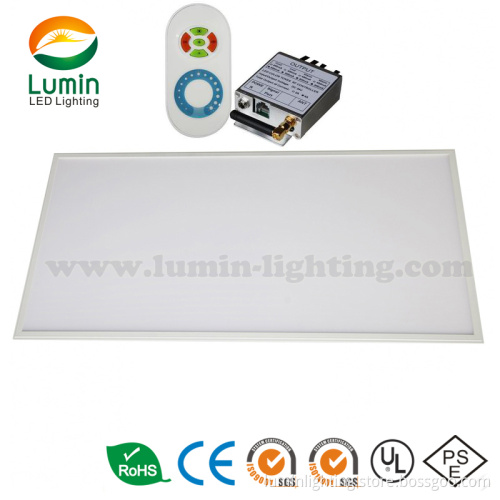

60W Best Dimmable LED Panel Light (LM-PL-16-60)
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | Shenzhen, China |
---|---|
Payment Type: | L/C, T/T, Paypal, Money Gram, Western Union |
Introduction
This kind of LED panel is combined side emitting backlight technology with special designed DOT LGP, with the features of uniform illumination. LED panels can be widely used in the commercial and residential areas; LED panel is an ideal replacement of conventional CFL LED tube fixture1200*600mm in the ceiling
Specification
- Model NO.: LM-PL-16-60
- Power consumption: 60 W
- Dimension: 1195x595x 9 MM
- Input voltage: AC 90-265 V
- Output voltage: DC 60-70 V
- Color temperature: 2700-3000 K ; 4500-5000 K; 6000-6500 K
- Constant current: 900 mA
- Lumen output: 5000 LM
- CRI: Ra>90
- Power factor: PF>0.98
- Anti-electric shock rate: ClassII
- Temperature rising: <20 degree
- Protection class: IP44, IP65
- Material: Aluminum alloy,PMMA,PC
Product features:
1. High efficiency: High lumen output, low power, power efficiency above 80%.
2. Stable: Constant current driver, fast response(no delay), low temperature, easy installation.
3. Long lifespan: Above 35, 000 hours.
4. Labor cost saving: very easy to install ! not like tube fixture
5. Ultra-thin: only 9mm
6. Compatible with all dimming system
Application
It is ideal for hotels, conference rooms, factories, offices or hospitals and other indoor areas which require high Illumination and energy-saving.
Production Site

Installation

Welcome to get more information about the project !

1. Lumin Profile
Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting was founed on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development.
Lumin Lighting product lines mainly include LED panel light, LED tube light, LED downlight, LED bulbs, and LED street light, LED flood light, LED garden light, and LED underground light. Meantime, Lumin Lighting also provides customized lighting solutions to customers.
Lumin Lighting takes product quality as our lifeline. We focus on quality control during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.
Lumin Lighting has an excellent research and development team. New products are launched and old ones are refined every year.
Facing severe global warming and energy crisis, Lumin Lighting would like to work with anyone who loves the earth and environment protection in order to make a better place for the human being, by utilizing and popularizing our green LED lighting products.
2. Core Value
Loyalty, Action, Sustainability, Responsibility
3. Business Philosophy
Lumin Lighting is devoted himself to providing quality LED lights and services to families, institutions and communities through continuous innovation. We always believe that "the customer is always right". The customer complaint is always fast responded as long as any feedback comes. And we always believe that "win-win strategy" can help us keep long-term business relationship with customers
Any inquires about LED panel, please leave us a message or visit our
Thank you for your support !
Dimmable LED Panel / led panel light / ceiling lamp / ceiling light / led ceiling light / led panle 600x600,/ led panel lamp / led panels
Specification of 60W 1200*600 MM LED Panel Light | |||||
MODEL | LM-PL-16-60W | ||||
Optical | Light source | 300 pieces of SMD LED 3014 | |||
Luminous flux | Cool white | 4680 LM | |||
Natural white | 4680 LM | ||||
Warm white | 4446 LM | ||||
Color temperature | Cool white | 6000-6500 K | |||
Natural white | 4500-5000 K | ||||
Warm white | 2700-3000 K | ||||
Color render index | Ra ≥90 | ||||
Beam angle | >120° | ||||
Optical decay rate | less than 1.8% in 3000 hours | ||||
Service life | ≥50000 Hrs | ||||
Electric | Input voltage | 90 ~265 Vac | |||
Frequency | 50 ~60 Hz | ||||
Output voltage | 60-70 Vdc | ||||
Power consumption | 60 W | ||||
Power factor | ≥0.98 | ||||
Anti-elec shock rate | Class II | ||||
Starting time | ≤1.2 S (@ 110Vac) | ||||
Withstand voltage | 3000 Vac/1 min | ||||
Structure | Materials | Aluminum, PMMA LGP, diffuser | |||
Temperature rising | <20 degree | ||||
Dimension | 1195 x 595 x 9 MM | ||||
Net weight | 6.5 KG | ||||
Protection class | IP 44 | ||||
Others | Working temp/humidity | -30~+50, 10% ~80% R.H. | |||
Storage temp/humidity | -40~70, 0% ~100% R.H. | ||||
Certification | CE RoHS CCC |
