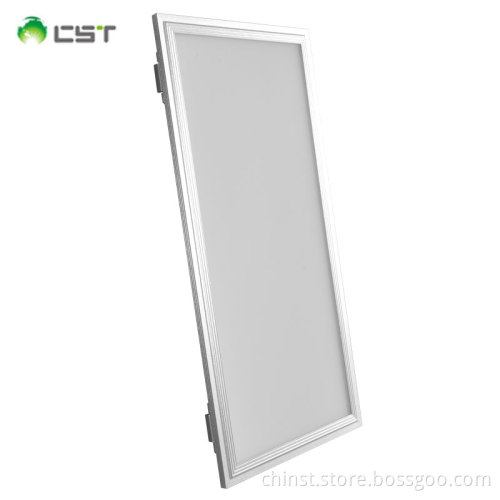

CE RoHS Approved 600*300 25W LED Panel Lamp

600*300 smd2835 25w 132pcs leds, high efficiency, low power consumption, No flickering, starting no delay, led panel lamp.

1, Advantages:

Easy installation: Simply replace  the grill lamp or false ceiling, or hang from the roof using chains;

Super Slim of 10mm thinckness, making for attractive and versatile signage;

Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;

Cooler than traditional display, versatile in size, shape and configuration;

Four Sides illuminating,beat heat sink,with temperature rise less than 20 degree,good for extending the panel's lifespan;

Optimized circuit design ensures no interference with any other LEDs when a single one fails.


2, Feature:

80% less power consumption  than traditional lighting source;

SMD LED from Epistar or San'an with superb feature;

Ultra slim and light, with thickness only 10mm;

External high PF Constant Current LED Driver,instant start, No flickering and No humming, safe and reliable;

Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;

Long lifespan >50,000hours, 3 years warranty,CE,ROHS approved.


3, Applications:


LED Panel Ceiling are used for Ceiling, Walls, art gallery, the car, the counter,etc.


4, Installation:


1, Fix the Panel light to the ceiling;
(1,) Embedded installation and replace the ceiling with the panel which has the same specifications;
A, Take off the ceiling and put the pannel into the ceiling from the diagonal;
B, Fix the panel to the T shelf.
(2,) Inhaled installation
Mount the ceiling frame to the hole, fix the panel light as showed in the above A.

2, Fix the panel light on the wall
(1,) Fix the wall frame to the wall with screws;
(2,) Settle the driver into the frame;
(3,) Screw the panel on four angles of the frame and tighten the screws;
(4,) Fix the hanging rope to the ceiling;
(5,) Screw the hanger into the threads in the four angles of the panel;
(6,) Adjust to the proper height.

5, Panel Parameter:




Factory Demonstration:
