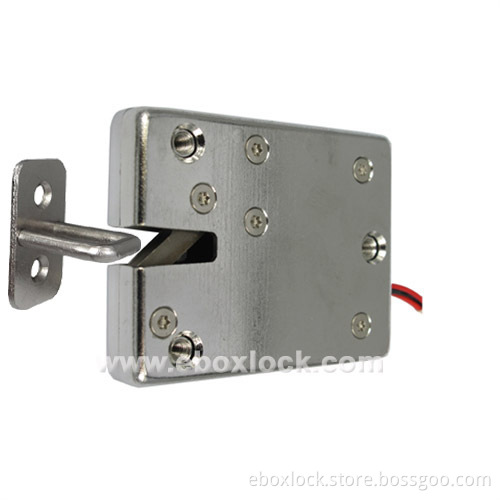

Compact Electric Drawer Lock for Display Case (MA1208)

Electric Cabinet Lock (MA1208) is a compact and all-metal lock ideal for delivery locker, cabinets, drawers and steel furniture. Surface mounting either vertically or horizontally offers easy and flexible installation. The electric cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. The cabinet lock allows mechanical override for emergency open. Electric Cabinet Lock (MA1208) is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Features
Superior heavy duty metal construction
Chrome-plated steel housing
Surface-mounted compact electric lock
Convenient mechanical override enables manual release during power failure
Three-bolt regular triangle mounting enables high security and low install cost
Accepts access control signals from keypads and card readers
Can be fitted to delivery lock, cabinets and drawers etc
Patented Design
2 years limited warranty

Specifications
Operation Voltage 12/24VDC intermittent ±10%
Power Consumption 12V DC   800mA
Operation Mode Fail Locked
Holding Force 100KG
Cycle Rating More than 1,000,000
MS Contact Rating 2A @25V
Mechanical Override Top or down
Working Temperature -20ºC ~ +60ºC
Dimensions LxWxH 72mm*56mm*13.8mm
Protection Class IP20

Applications
The electric cabinet lock is ideal for various applications as following:
Delivery locker for supermarket, spa or school
Storage locker for school, spa and etc
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and delivery box
