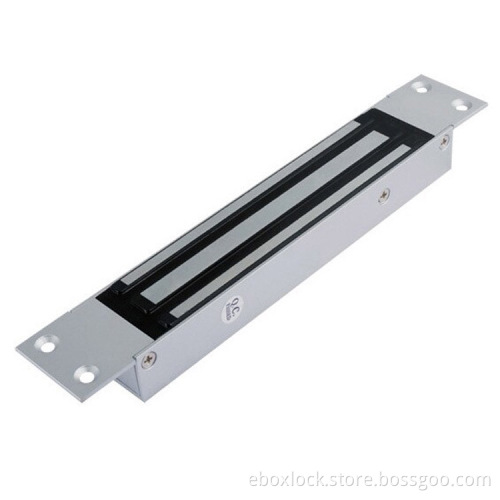

Mortise Mount Electro-Nagnetic Door Lock 700lbs (320KG) with Lock Status Sensor

Electromagnetic lock ME1232FS is a durable electromagnetic lock ideal for single doors. It is with door status reporting. Flush mounting either vertically or horizontally offers easy and flexible installation. Hardware accessories include brackets, housings, and dress covers as needed for every opening type. The Electromagnetic lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. It is with high durability and low maintenance.

Features
Superior alloy-constructed lock body and strikes
Architectural brushed stainless steel finish provides corrosion resistance
Built-in micro switch for door status reporting
Flush mounting and easy installation using only a drill and allen wrench
Fully sealed electronics for tamper proof and weather proof
Instant release circuit, no residual magnetism
Low noise operation
Accepts access control signals from numeric keypads and card readers
Can be fitted to wooden door, glass door, metal door, fire door and security door

Specification
Operation Voltage                      12VDC ±10%
Power Consumption                 480mA@12VDC
Operation Mode                          Fail unlock
Holding Force                             320KG(700lbs)
Cycle Rating                                More than 1,000,000
Working Temperature                -10ºC ~ +55ºC
Lock Dimensions LxWxH          249.5mm*49.5mm*26.5mm
Strike Dimensions LxWxH        180mm*38mm*11mm
Gross Weight                              1.93kg


Applications:
The electromagnetic lock is ideal for various applications as following:
Wooden door, glass door, metal door, fire door and security door
