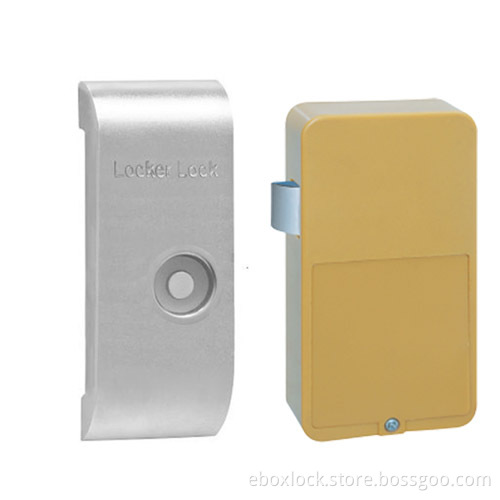

TM Card Locker Cabinet Lock (MT0415)

TM Card Locker Lock (MT0415) is a zinc alloy electronic cabinet lock powered by battery, which is ideal for spa locker, gym locker and swimming locker cabinets and drawers. The cabinet lock is featured by stylish and moisture proof alloy panel. Surface mounting offers easy installation. The Card Locker Lock (MT0415) is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Features
Compatible with TM1990A card.
Master card allows emergency override
LED indicator indicates operation status
Door status detection
Indicator for low battery alarm and tamper guard
Allows external power supply in case the battery power runs out
Ideal for filing cabinets, key cabinet and storage cabinets

Specification
Operation Voltage DC6V( AAA1.5V*4) alkaline battery
Operation Current 200MA-PP
Dynamic current <220mA
Operation Mode Fail Locked
Alarm power < 4.7V
Cycle Rating More than 10,000 times
Anti-Static Electricity Air discharge 15KV,Contact discharge 8KV
Working Temperature -15ºC ~ +65ºC
Panel Dimension LxWxH 100mm*40mm*15mm
Cylinder Dimension LxWxH 125mm*65mm*25mm
Weight 250g
Protection Class IP20
Packing 16x85x70mm
Material Zinc Alloy Panel
Color Silver

Applications:
The Keypad cabinet lock is ideal for various applications as following:
Electronic lockers
Metal cabinet or steel furniture
Retail display cases and drawers
Filing cabinets
Utility cabinets and drawers
Museum display cases
Pharmaceutical cabinets and drawers
Electronic letterbox and delivery Locker
