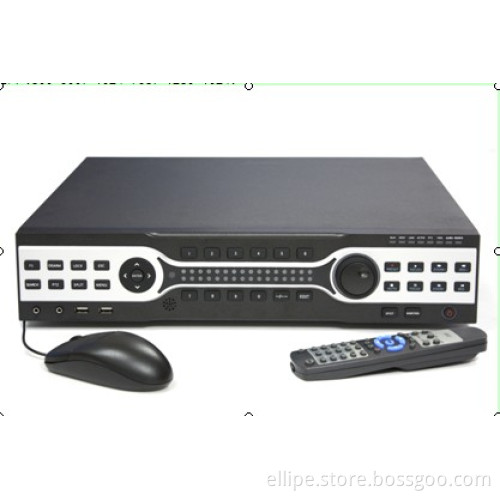

32CH CCTV Standalone DVR (ELP-DVR9032H)

32CH H. 264 CCTV Standlone DVR: ELP-DVR9032H

1. Video input: 32 CH BNC (1.0Vp-p, 75Ω )
Video output: 2CH BNC (1.0Vp-p, 75Ω ) (1CH Spot Video output, 1CH Matrix Video Output)
1 CH VGA(800× 600, 1024× 768, 1280× 1024)
Or 1CH HDMI(Max support 1920× 1080p@30fps, 1920× 1080I@60fps, adaptive output)
2. Audio input: 16 CH BNC (linear voltage, 10.0KΩ )
Audio output: 2 CH RCA (linear voltage, 1.0KΩ )
3. Video compression: H. 264 (Main Profile), Picture compression: JPEG, Audio Compression: ADPCM
4. Display Resolution: D1, Record Resolution: QCIF, CIF, HD1, D1(optional), 2 CH D1+30 CH CIF real-time
5. Alarm input: 16CH, ouput: 4CH
6. Network: RJ45, auto adapt 10/100/1000M Ethernet, support PPPOE, DHCP&DDNS
7. Record mode: Manual, motion detection, Timing, Alarm trigger, Auto start.
Frame Rate: 25(PAL)/30(NTSC) FPS all real time, flexible
8. Playback: 32CH simultaneously
9. HDD: Support 8 x SATA interface, Max. 2T/HDD, support 1 E-SATA interface
10.3 USB2.0, support mouse, flash memory, Remote HDD and DVD writer
11. Communication port: 1 RS232 port, 2 RS485 port
12. Power supply: AC 220/230V 50/60Hz or AC 100V-240V 50/60Hz
13. Dimension(W× D× H): 540× 540× 190 mm
14. Operating environment: Humidity: 10~90% RH, Temperature: -10~55 Degree
15. iPhone, Android, Symbian and Windows Mobile for 3G live viewing
16. Support alarm email function, Build-in E-map view, Electronic zoom in live.
17. With HDMI PORT
