2 Megapixel 1920X1080 USB Camera 30fps

2.0 megapixel 1920x1080 USB camera with UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above EL-USBFHD01M-L36



 Specifications

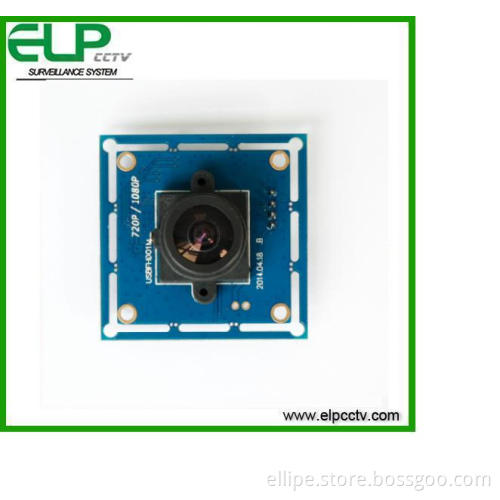

USB camera module: ELP-USBFHD01M-L36

Optional models

ELP-USBFHD01M-L21(2.1mm lens)

ELP-USBFHD01M-L28(2.8mm lens)

ELP-USBFHD01M-L36(3.6mm lens)

ELP-USBFHD01M-L60(6mm lens)

ELP-USBFHD01M-L80(8mm lens)

ELP-USBFHD01M-L12(12mm lens)

1.High speed USB 2.0 interface;

2.High quality image CMOS sensors OmniVision;

3.High frame rate MJPEG 60 fps @ 1280 (H) x 720 (V) , 30 fps @ 1920 (H) x 1080 (V);

4.With UVC.

General Description

The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial

machine monitoring and toys. It use high quality image sensors made by OmniVision,

one of the world leaders in this field of electronics.

The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.


Features

*CMOS 1080P sensor for high quality image and low power consumption.

*High speed USB 2.0 interface for high resolution PC camera interface.

*high pixel technology for sharp image and accurate color reproduction.

*low light performance ideal for any lighting condition.

*Super small outline and thin profile for embedded applications.

*High frame rate deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.

*High quality lens, true and undistorted color image.

*Low power consumption ideal for portable equipment.

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

*Camera with UVC.


Parameters

Image Sensor: OmniVision 1/3" Color CMOS image sensor OV2710

LENS: 3.6mm (2.1mm/2.8mm/6mm/8mm/12mm Optional)

(can also choose other suitable lens as your required view angle)

CABLE: 1m USB cable (2M/3M/5M optional)

(can also make the other special length cable according to your requirement)

Effective Pixels: 1920 (H) x 1080 (V) pixels

             1280 (H) x 720 (V) pixels

800 (H) x 600 (V) pixels

640 (H) x 480 (V) pixels

Signal Output: Serial data for USB standard compliant 2.0

Performance: MJPEG 30 fps @ 1920 (H) x1080 (V)

             MJPEG 60 fps @ 1280 (H) x 720 (V)

Operating System: Linux 2.6.26 or above, Windows XP SP2or above, Android, Windows CE, Mac OS

UVC: Windows XP SP2 or above

Operating temperature: -30°C-70°C

Power Consumption: 5V 100mA

Dimensions (mm): 32mm*32mm/38mm*38mm

(can make other dimension as customers' requirement)
