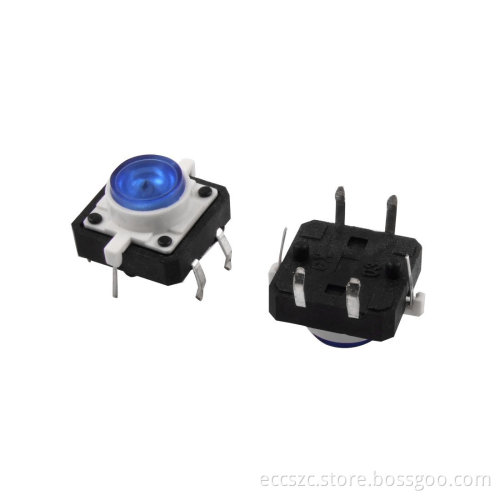

Illuminated Blue Light LED Tact Switch

2014 China Electronic Component LED Light Of Tact Switch

Mechanical characteristics(tact switch ):
Tact switch Travel: 0.25+_0.1mm
Tact switch Operating force: 130, 160 or 250+_50gf
Tact switch Stop strength: 30N(3kgf) for 3 seconds

Tact switch Electrical characteristics:

Contact resistance: 100mOhm max
Rating: DC 12V; 50mA
Insulation resistance: 100mOhm max
Withstand voltage: 250V AC for 1 minute

• Sample:
  1. Sample: we can provide free samples for most of items.
  2. Samples time: Need 3-5 days to preparing the samples ,
  except some especially items.
  Quality Guarantee:
  1.Strictly quality Check before leave factory
  2.We have ISO9001 ROHS certificates.
