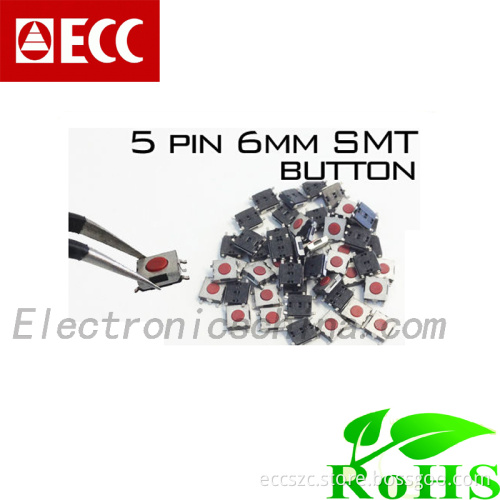

Tactile Tact Push Button Switch 6 X 6mm X 2.5mm Tact Switch
- Payment Type:
- T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Switch Made-in-China |
|---|---|
| Payment Type: | T/T |
Product Description
Product Description
- Tactile Tact Push Button Switch 6 X 6mm X 2.5mm Tact Switch
- Current Rating: 50mA
- Voltage Rating: 12VDC
- Insulating Resistance: >100M ohm 250V DC
- Withstand Voltage: 250V AC in 1 minute
- Contact Resistance: <100m ohm
- Soldering Temperature: 240 deg C Max in 3 seconds
- Mechanical Life: >100,000 Cycles
- Electrical Life: >100,000 Cycles
- Ambient Temperature: -25 deg C ~ +70 deg C
- Ambient Humidity: <85 %RH
- Operating Force: 160 +/- 30gf 250+-30%
