Product Description

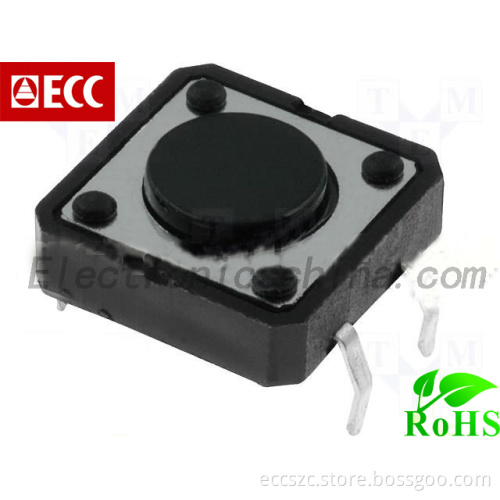

Tact Switch Push Button 12X12mm H4.3mm Tact Switc(H 4.3 / 5 / 7/ 8 / 13 / 5.5 / 6.0 / 8.5 / 11 / 7.5 / 12 / 9 / 13.5 / 9.5 )
Current Rating: 50mA
Voltage Rating: 12VDC
Insulating Resistance: >100M ohm 250V DC
Withstand Voltage: 250V AC in 1 minute
Contact Resistance: <100m ohm
Soldering Temperature: 240 deg C Max in 3 seconds
Mechanical Life: >100,000 Cycles
Electrical Life: >100,000 Cycles
Ambient Temperature: -25 deg C ~ +70 deg C
Ambient Humidity: <85 %RH
Operating Force: 160 +/- 30gf 250+-30%
