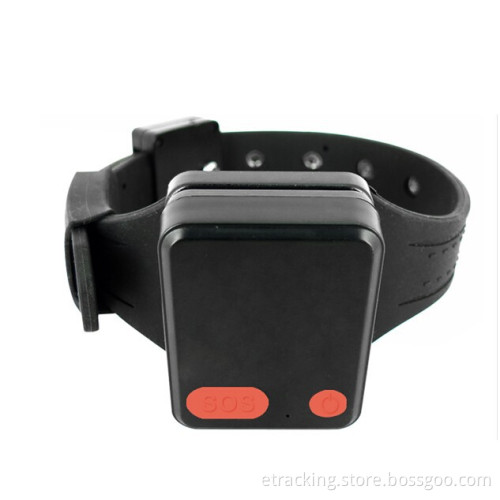

New Arrived Mt60X GPS Prionser Watch Tracker Query Apn Automatically Sos Emergency Calling Tracking Regularly by GPRS Mt-60X

New arrived MT60X gps Prionser watch tracker Query APN automatically SOS emergency calling Tracking regularly by GPRS MT-60X



Product overview:

Tracker has the advantages of waterproof IP67, low power consumption, small size, easy to use and 10-12 days standby without charging.
It is a GPS/GPRS personal location tracker.


It specially applies for alzheimer's patient tracking, prisoner/parolee management, pet tracking, etc.



The tracker supports three working modes: Personal mode, smart mode, vehicle mode.



Features:
Waterproof: IP67
Easy authorized phone number setup by calling
Real time tracking
Remotely monitoring
SOS emergency calling
Tracking regularly by GPRS
GPRS data logger
Query APN automatically
3 kinds of tracking mode
Geo-fence
Time-zone setting
Low battery alarm
Auto power on/off
Belt-on/off alarm
Wireless charger (optional)




Safety instruction:

Read these simple guidelines. Not following them may damage the tracker, put you in danger or break the law.


Switch on safely

Do not switch the tracker on when wireless phone use is prohibited or when it may cause interference or danger.
Switch off in hospitals
Follow any restrictions. Switch the tracker off near medical equipment.
Switch off in aircraft
Follow any restrictions. Switch the tracker off on the plane.
Switch off when refueling
Do not use the tracker when at a refueling point.
Switch off near blasting
Follow any restrictions. Do not use the tracker when blasting is in progress.
Qualified service
Only qualified personnel can repair the tracker.
Water resistance
IP67.


Specification and parameters:

Items
Specification
Charging Voltage
DC 4.5-5.5V/750mA (Mini USB)
Internal Battery
Rechargeable 750 mAh battery(3.7V)
Dimension
55*43*13mm
Weight
147.5g
Operating Temperature
-20 ~ +55 ° C
GSM Module
Quad Band GSM 850/900/1800/1900 MHz
GPS Chipset
Newest Ublox chipset
GPS Sensitivity
-160Db
GPS Frequency
L1, 1575.42 MHz
C/A Code
1.023 MHz chip rate
Channels
50 Channels
Position Accuracy
<10 M, 2D RMS
Velocity Accuracy
0.1 M/S
Time Accuracy
Satellite Time: 1 millisecond time synchronization
Update Time
Average 0.1 second
Hot Start up
Average 1 second
Warm Start up
Average 3 second
Cold Start up
Average 27 second
Max. Altitude
18, 000m (Max. 60, 000 ft)
Max. Speed
500 m/s (Max. 1000 knots)
Max. Acceleration
Less than 4g
Working time
10-12 days of standby time in personal mode; 12 hours of standby time in vehicle mode
LED
3 lights for showing states of power, GPS, GSM
Button
2 buttons. 1 SOS button, 1 power switch



Red/green – Power indication
The red light is always on
Power charging
The green light is always on
Power charging finished
Blue – GSM indication
0.3s on and 0.3s off
GSM module is initializing or calling in
Always on
GSM network is not registered
1s on and 3s off
GSM network is registered
0.1s on and 3s off
GSM network is registered and connected to the server by GPRS
Always off
GSM in power save mode
Yellow – GPS indication
0.3s on and 0.3s off
GPS module is initializing or waiting for the SOS button press to confirm the calling in number as the authorized number
Always on
Button being pressed
1s on and 3s off
GPS module is working normally but hasn't fixed position
0.1s on and 3s off
GPS module is working normally and has fixed position
Always off
GPS module stops working
Switch
Power switch
Long press power switch for 5 seconds for turn on/off tracker; After connected with the belt, tracker only can be turned on and can not be turned off.
Button
SOS Button
Press SOS button for 3 seconds so tracker will send an emergency SMS to the authorized number and dial it
Others
Belt
Belt-on/off alarm


Tracking Platform: 3 months for free
