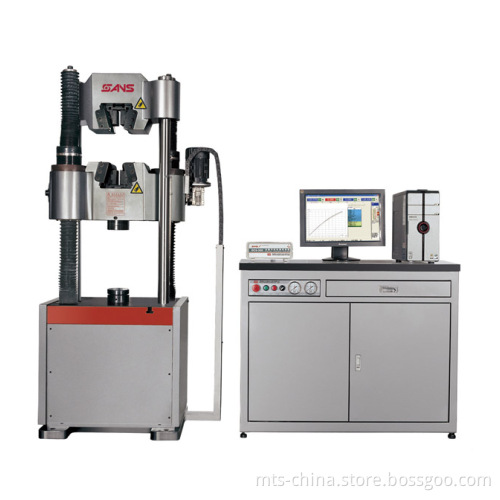

SHT4000-W Hydraulic Universal Testing Machine

SHT4000-W Universal Testing Machine is engineered to deliver the high capacity for tension and compression tests of high-strength specimens in a wide range of shapes and sizes. The machine is available in a high-stiffness with 4/6 columns and has a force capacity ranging from 300kN to 2000kN. With servo valve to control the loading, the machine is able to carry out digital closed loop control for load, extension and displacement. Features: 1. Standard Dual Zone Test Space for reducing setup time. Tension on topCompression on bottom2. Lower crosshead is driven by worm wheel reducer with high stability. 3. Complete selection of grips, fixtures and extensometers4. Load measurement resolution: 1/300000 of capacity, no steps in full loading range and keeping unchanged5. Closed loop control among stress, strain and displacement6. High-resolution, digital DSP-based control system7. High speed (12MB/s) on data exchange with a USB communication8. Automatic and efficient to set up test parameters according to test standards9. Automatic limit checking of crosshead position, overload, over temperature, over voltage etc.
