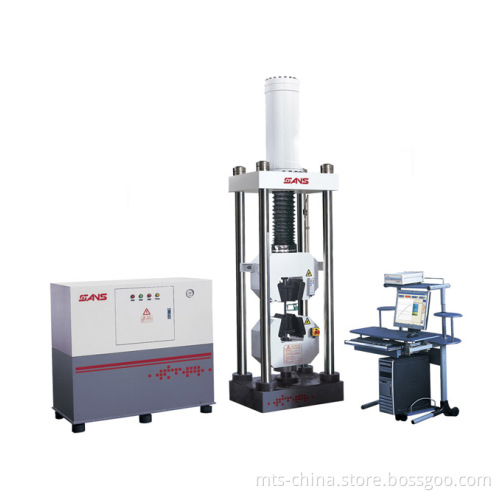

SHT5000 Hydraulic Universal Testing Machine

SHT5000 Universal Testing Machine is engineered to deliver the high capacity for tension and compression tests of high-strength specimens. The frame features a large and single testing space with bottom-placed actuator (below 300kN) or top-mounted actuator (above 300kN) and has a force capacity ranging from 300kN to 2000kN. With servo valve to control the loading, the machine is able to carry out digital closed loop control for load, extension and displacement. Features: 1. Extra-large single test space makes it easy to perform the tests for common metals. 2. Appropriate working height and ergonomic controls improve operator efficiency. 3. Long stroke, high-speed actuator is suitable for consecutive tensile test of specimens with similar size4. Load measurement resolution: 1/300000 of capacity, no steps in full loading range and keeping unchanged5. Closed loop control among stress, strain and displacement6. High-resolution, digital DSP-based control system7. High speed (12MB/s) on data exchange with a USB communication8. Automatic and efficient to set up test parameters according to test standards9. Automatic limit checking of crosshead position, overload, over temperature, over voltage etc.
