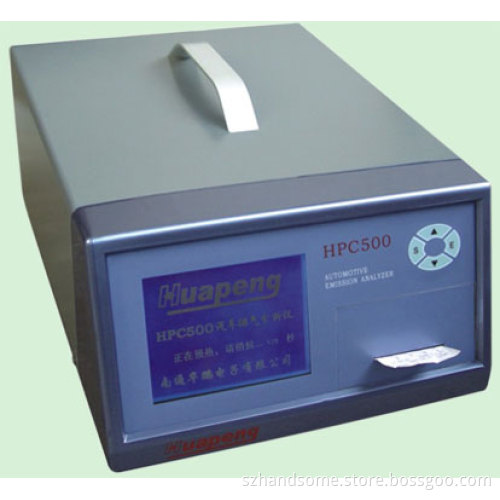

Hpc-500 Car Emission Gas Analyzer

HPC-500 car emission gas analyzerMain Features: The large screen liquid crystal display, ( Chinese or English ) menu; The use of German imports of infrared detector, O2and NOX sensor, vibration resistance, good stability, high precision; The measurement of CO, HC, CO2for O2, NOX, COcor, concentration and the lambda value, speed, temperature, flow, pressure; With the single, double idle idle, general measuring function; It can be measured with gasoline, LPG, CNG and alcohol as a fuel for vehicle; According to the new standard and the United States BAR97standards development, in line with the ISO3930or OIMLR99 I level precision; With the automatic zero adjustment, automatic cleaning, automatic temperature compensation, pressure compensation; With the HC residue measurement, traffic monitoring, gas leak check; The machine has self diagnostic function, fault when prompted, until the troubleshooting can continue measurement; With speed, temperature measurement, built-in printer or digital (Analog ) interface network; The license plate number input and 2000 groups of data storage, reference function, clock display; Main technical parameters: Test Scope: HC: 0~10000× 10-6(ppm)vol CO: 0~10× 10-2(%)volCO2: 0~20× 10-2(%)vol O2: 0~25× 10-2(%)volNOx: 0~5000× 10-6(ppm)vol λ : 0.5~1.5 COcor: 0~10× 10-2(%)volR. M. P 0-9999r. M. P OIL TEMP: 0-150° CShows the value error: HC ± 12× 10-6(ppm)vol (absolute error)or± 5% (relative error)CO± 0.06× 10-2(%) vol (absolute error)or± 5% (relative error)CO2 ± 0.5× 10-2 (%) vol (absolute error)or± 5% (relative error)O2 ± 0.1× 10-2(%) vol (absolute error)or± 5% (relative error)NOx ± 25× 10-6(ppm)vol (absolute error)or± 4% (relative error)Stability: Automatic zero, volume moments drift ≤ ± 3%Repeatability: Repeat error ≤ ± 2%Resolution: HC: 1× 10-6(ppm)vol CO: 0.01× 10-2(%) volCO2: 0.1× 10-2(%) vol O2: 0.01× 10-2(%) volNOx: 1× 10-6(ppm)vol λ : 0.01R. P. M: 10r. P. M, OIL TEMP: 0.1° CResponse Time: 95% of the response to no more than 10 secondsWarm-up Time: 8 min(May the preheating 3min urgent examination)Output Mode: Can display can be printed gas concentrations in the maximum, Average, minimum and license plate number, test time, date, speed, oil temperature, and λ , COcor values may also be attached to interface with the computer networkEnvironmental conditions: Temperature -5 ~ 50 ° C, relative humidity ≤ 90%Power: AC100-240V 50/60Hz or DC12V (select plus power inverter)Power consumption 40VADimensions: 420mm (length) × 310mm (width) × 170mm (H)Weight: About: 9kg
