ETCR2000+ Clamp Earth Resistance Tester



1. Introduction

ETCR Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc. When measuring ground system with loop, there is no need to disconnect the ground wire without auxiliary electrode, which means safer and faster. ETCR Clamp Earth Resistance Tester can measure the ground fault which can not be measured by traditional method, can apply in the occasion where traditional methods are unworkable; ETCR Clamp Earth Resistance Tester measures the integrated value of ground resistance and resistance lead.



2. Technical Specifications

Function Ground resistance test, Loop resistance test

Power Supply 6VDC , 4 PCS of AA Alkaline batteries

Resistance Range 0.01-1200Ω

Resistance Resolution 0.001Ω

Highest Resistance Accuracy ±1%±0.01Ω

Data memory 99 Sets

Alarm Threshold Setting Range Resistance: 1-199Ω

Alarm Sound and Light "Beep-beep-beep" alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.

Interference Signal Recognition

"Beep-beep-beep" tone, NOISE symbol blinking

Working Temperature and Humidity -20°C-55°C. 20%RH-90%RH

LCD Screen 4 Digits LCD display, Screen L×W: 47mm×28.5mm

Clamp Size 65mm×32mm

Clamp Opening Extent 32mm

Tester Weight 1160g (With batteries)

Clamp Dimension L×W×T: 285mm×85mm×56mm

Protection Level Dual Insulation

Structural Feature Clamp CT

Shifting Automatic shifting

External magnetic field <40A/m

External electrical field <1V/m

Single measurement time 0.5 second

Resistance measurement frequency >1KHz

Measured current frequency 50/60Hz Automatic measurement

Low Battery Indication Low battery symbol displays when battery is lower then 5.3V

Memory Full Indication MEM symbol blinks when all 99 sets memory is full

Over Range Indication Out of range indication "OLΩ", "L0.01" or "OL A"

Auto Power-off 5 minutes after Boot up

Power Consumption Max 50mA either in booting up or normally working, Continuously working for 30 hours

RS232 Interface (Optional) The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files

Safety Provisions IEC1010-1, IEC1010-2-032, Pollution level 2, CATIII (600V)

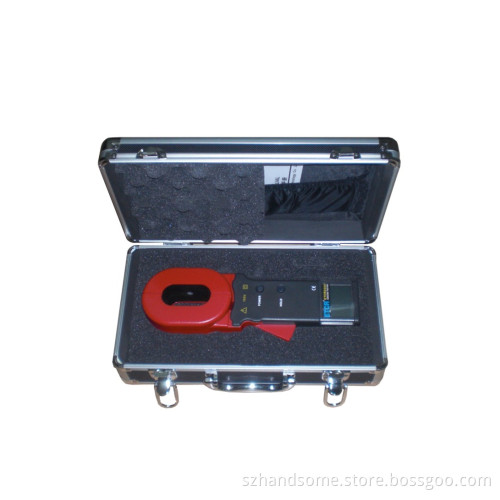

Accessories Meter: 1 piece, Test ring: 1 Piece, Meter Suitcase: 1 Piece
