VA18B Digital Multifunction Autorange Multimeter

Get Latest Price

Payment Type:: T/T, Western Union, Paypal, Money Gram, Alipay, Esc

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union, Paypal, Money Gram, Alipay,Esc

Product Description

Product Overviews

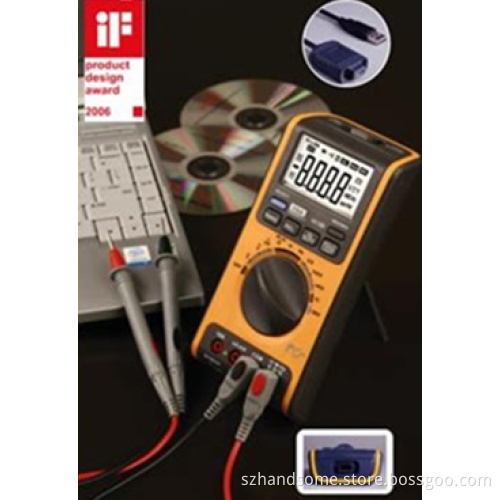

Digital MultiFunction Autorange Multimeter VA18B
Key Features: Effective, Reliable and Easy to Use!

USB port connect to PC

6000 counts

Diode test / Buzzer

Temperature test

Frequency / Duty Cycle

Relative measurement

Data hold

Auto power off & Sleep Mode w/ disable feature

Auto / manual range

Selectable °C and °F

Electronic protection system

In conformity with IEC1010 CATII 1000V

Convenient fuse / battery change design

Over range indicator & low battery indication

With LED backlight LCD display and back stand

Measures maximum value and minimum value

100% Brand New

Offers 1 YEARS WARRANTY

Electrical Specifications

DCV:- Input Impedance (Nominal): DC voltage: >10MΩ

ACV:- Input Impedance (Nominal): AC voltage: >10MΩ

Diode Test

Continuity Check

Environment conditions: 1000V CAT. II and 600V CAT. III

Environment conditions: Pollution degree: 2

Environment conditions: Altitude < 2000m

Operating temperature: 0°C~40°C, 32°F~122°F (<80% RH, <10°C non-condensing)

Storage temperature: -10°C~60°C, 14°F~140°F (<70% RH, battery removed)

Temperature Coefficient: 0.1 x (specified accuracy) / °C (<18°C or >28°C)

MAX. Voltage between terminals & earth ground: 700V AC rms or 1000V DC

Fuse Protection: µA and mA: F 750mA / 250V Ø5x20; A: F 10A/250V Ø6.35 x 31.8

Sample Rate: 3 times/sec for digital data

Display: 3 5/6 digits LCD display

Automatic indication of functions and symbols

Range selection: automatic and manual

Over Range indication: LCD will display "OL"

Low battery indication

Polarity indication: "-" displayed automatically

Power Supply: 9V Battery (included)
