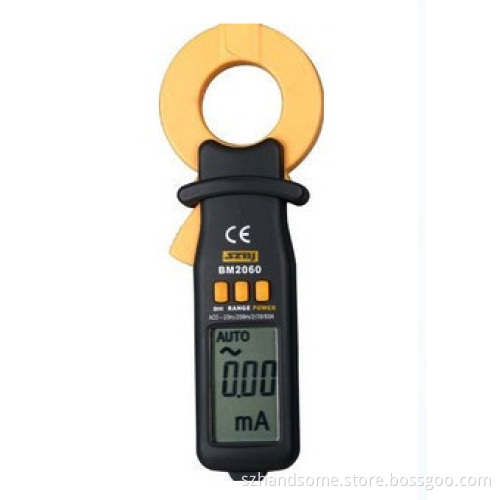

KLH-2060 Leakage Current Clamp Meter

Leakage Current Clamp Meter KLH-2060


1. Overview

2060 is a 3 1/2 digital micro-current clamp meter with stable, safe, and reliable performance. The meter can automatically switch among the ranges of 20mA, 200mA, 2A, 20A, and 60A during measurement. It is an intelligent and digital clamp meter with automatic range switching function and high precision, and specially used in the measurement of small alternating current.

2. Characteristics

Max. Display: 1999

Manual range: Press "RAN GE" button to switch

Automatic rang: Automatically switch among 20mA, 200mA, 2A, 20A, and 60A

Data hold: A letter "H" is displayed.

Low-voltage display: A sign " " is displayed

Max. Caliber of the clamp mouth: D = 30mm

Size of the meter body (the place with the max. Width): 170×61×27 (mm)

Net weight of the meter: 136g (the batteries are not included)

Automatic shutdown: The meter shuts down automatically when no button is operated for approx. 10 minutes.

Battery type: Two pieces of No. 7 dry batteries (AA A), 1.5V*2

3. Range parameters

Precision (±% reading ± number); One-year warranty

Environmental temperature: 23°C±5°C; Relative humidity <75%

Range Resolution Precision (50/ 60Hz)

20mA 0.01mA ±(1.5%+5)

200mA 0.1mA ±(1.5%+5)

2A 1mA ±(1.5%+5)

20A 10mA ±(1.5%+5)

60A 100mA ±(1.5%+10)
