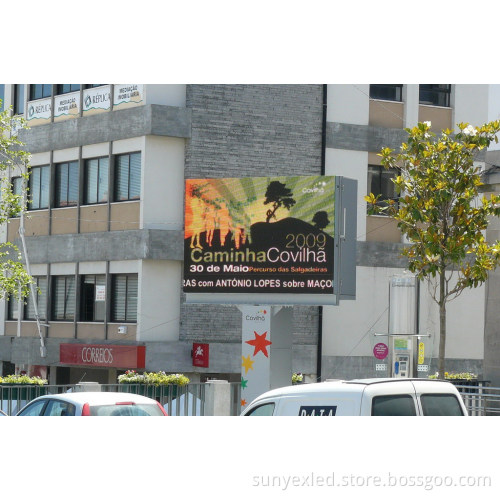

Outdoor Full Color LED Display P16 for Advertisement

 P16 Outdoor Full Color LED Display Parameter

No.TypeFull Color
1Pixel Configuration: 2R+1G+1B
2Module Resolution: 16pixels(H)×16pixels(W)
3Module Dimension: 256 mm(H)×256mm(W)×160mm(L)
4Power Consumption(average): 400w/ m2
5Power Consumption(max): 800 w/ m2
6Density: 3906pixels/m2
7Brightness: >7000 nits
8Color: 16.7 M
9Brightness Control: Manual/Auto
10Gray Scale Rectification: rrectification
11Picture Regulation: Contrast/Chroma regulation/Module brightness regulation
12Drive Mode: Static
13Refresh Rate: 1080HZ
14Control Mode: Synchronization control
15Video Interface: S-Video, VGA, DVI etc.
16Life Time: 100,000 hours
17Mean Time To Failure: >10,000 hours
18Blind LED: None
19Temperature: -35°C~+55°C
20Relative Humidity: 10%-95%RH
21Display Flatness: The display:±1mm Gap between modules:1mm
22Display Information: Video, Animation, Picture, Text etc.
23Voltage: 220V±10%,380V±10%
24Communication Distance: <20km
